Custom Glass-Fiber PCB Fabrication for Prototypes, Multilayer Boards, HDI Designs, and Production

When your PCB design depends on the mechanical stability and predictable manufacturing behavior of glass-fiber reinforced laminate, material selection alone is not enough. Shenzhen Hongda Circuit Technology Co., Ltd. provides custom glass-fiber PCB manufacturing with engineering review, precision imaging, laser drilling, controlled lamination, copper plating, AOI, X-ray inspection, and electrical testing for demanding electronic applications.

Request a Glass-Fiber PCB Quote Email: pcb@pcbkr.com

What Is a Glass-Fiber PCB Manufacturer?

Engineer Examining Glass-Fiber PCB Blueprints

A glass-fiber PCB manufacturer produces printed circuit boards using glass-fiber reinforced laminate systems, typically combining woven glass reinforcement with an epoxy-based resin system and copper circuitry.

The important manufacturing question is not simply whether a supplier can process FR-4. It is whether the manufacturer can maintain the required laminate construction, layer registration, drilling quality, copper geometry, dielectric structure, and final dimensional accuracy throughout production.

For custom fiberglass PCB projects, Shenzhen Hongda Circuit evaluates the complete manufacturing chain:

Laminate → Stackup → Imaging → Etching → Lamination → Drilling → Plating → Solder Mask → Surface Finish → Testing → Inspection

This process-oriented approach helps buyers avoid a common sourcing problem: selecting a supplier based only on material availability while overlooking the manufacturing tolerances required by the actual PCB design.

Why Choose a Glass Fiber Reinforced PCB?

A glass-fiber reinforced PCB provides a combination of mechanical reinforcement, electrical insulation, dimensional stability, and established manufacturability.

For procurement and engineering teams, the practical value is the ability to build a PCB structure around the application’s actual requirements.

A glass-fiber PCB may be appropriate when the design requires:

• Rigid mechanical construction
• Stable multilayer architecture
• Reliable electrical insulation
• Conventional or high-density interconnection
• Compatibility with lead-free assembly
• Controlled impedance
• Through-hole, blind-via, or microvia structures
• Cost-effective production at prototype or volume scale
• Established PCB manufacturing processes

The exact performance depends on the selected laminate grade, glass style, resin content, copper construction, board thickness, stackup and manufacturing process.

That is why custom fiberglass PCB manufacturing should begin with engineering requirements rather than a generic FR-4 selection.

What Glass Fiber PCB Manufacturing Capabilities Should Buyers Verify?

A qualified supplier should demonstrate more than the ability to purchase glass-fiber laminate.

Before placing an order, verify the manufacturer’s capabilities in five areas:

For complex boards, equipment capability should always be connected to measurable process capability.

A supplier saying “we have LDI” is less useful than a supplier explaining how LDI is used to control image registration on the actual design.

How Does Shenzhen Hongda Manufacture Custom Glass-Fiber PCBs?

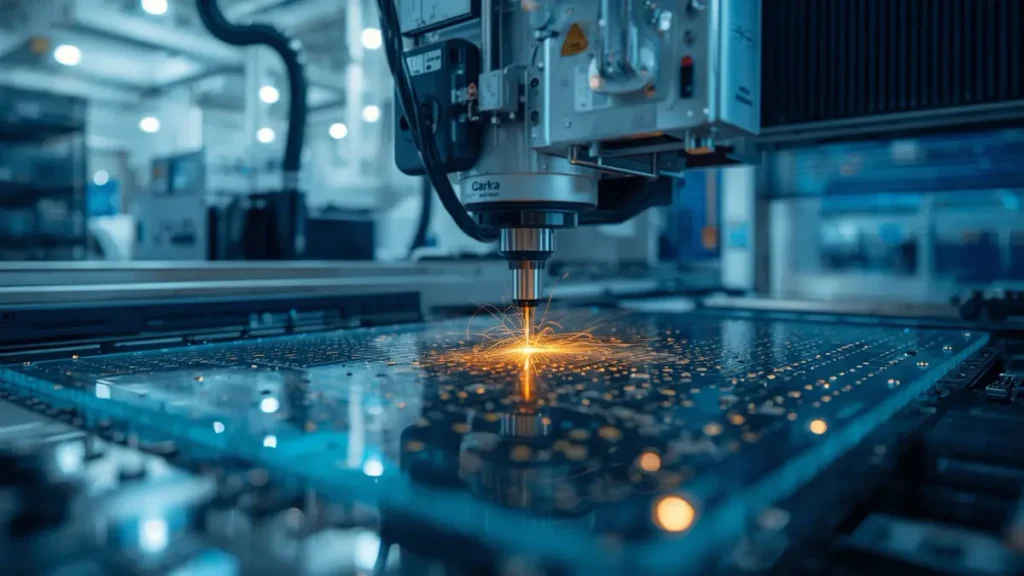

Advanced PCB Manufacturing Machine Performing Laser Drilling

Shenzhen Hongda Circuit uses a controlled PCB fabrication workflow in which the glass-fiber laminate is treated as part of the complete mechanical and dimensional system.

The manufacturing flow includes:

Material Preparation
↓
Inner-Layer Imaging
↓
Etching
↓
AOI Inspection
↓
Layup and Registration
↓
Lamination
↓
Mechanical / Laser Drilling
↓
Desmear
↓
Electroless Copper
↓
Copper Plating
↓
Outer-Layer Imaging
↓
Pattern Plating / Etching
↓
Solder Mask
↓
Surface Finish
↓
Electrical Test
↓
AOI / X-Ray / Microsection
↓
Final Inspection

The purpose of this flow is not simply to produce a circuit pattern.

The objective is to preserve the relationship between:

Glass reinforcement + resin distribution + copper geometry + layer registration + finished-board dimensions

That relationship becomes increasingly important as the PCB moves from a simple two-layer board toward multilayer, HDI and high-density structures.

How Does Glass Fiber Affect PCB Manufacturing?

Glass reinforcement creates a mechanically stable composite, but it also introduces manufacturing considerations that need to be managed during fabrication.

A glass-fiber laminate is not a completely homogeneous material. The structure contains:

• Glass bundles
• Resin-rich regions
• Copper layers
• Resin-to-glass interfaces
• Drill interfaces
• Laminated layer interfaces

These regions respond differently to mechanical and thermal stresses.

For the manufacturer, this means that process control must consider the laminate construction when controlling:

• Drilling
• Lamination
• Registration
• Resin flow
• Hole-wall quality
• Board flatness
• Copper adhesion
• Dimensional stability

This is particularly important for multilayer glass-fiber PCBs where many material interfaces interact during repeated lamination and thermal exposure.

How Does Glass Fiber Affect Multilayer PCB Fabrication?

For a multilayer glass-fiber PCB, the glass/resin architecture directly influences how the individual layers are assembled into the final board.

The engineering team must consider:

Layer registration

Every additional layer creates another alignment relationship.

Small registration errors can accumulate into:

• Via-to-pad misalignment
• Reduced annular ring
• Pad breakout
• BGA escape problems
• Interlayer electrical clearance problems

For this reason, stackup design and manufacturing compensation should be evaluated before production.

Resin distribution

Prepreg must provide sufficient resin to bond the construction without creating excessive resin starvation or unwanted dielectric variation.

Incorrect material combinations can contribute to:

• Voids
• Local delamination
• Inconsistent dielectric thickness
• Mechanical stress
• Uneven layer bonding

Copper distribution

Large differences in copper density between layers can contribute to uneven thermal and mechanical behavior during processing.

Copper balancing therefore becomes an important manufacturing consideration for complex multilayer constructions.

Can a Glass-Fiber PCB Manufacturer Produce HDI and Microvia Boards?

Yes, glass-fiber laminate is compatible with many HDI PCB architectures, provided the selected material and manufacturing process are appropriate for the design.

For HDI applications, the manufacturing chain may include:

• Laser-drilled microvias
• Blind vias
• Buried vias
• Stacked microvias
• Staggered microvias
• Via-in-pad
• Sequential lamination
• Fine-line circuit formation
• Controlled copper plating

Shenzhen Hongda’s published HDI capability includes laser drilling, sequential lamination, fine-line processing and multilayer HDI structures.

For procurement, however, the correct question is not:

“Can you manufacture HDI?”

The better question is:

“Can you manufacture our specific glass-fiber laminate, layer count, microvia structure, line/space and registration requirement with qualified process control?”

That distinction reduces engineering risk during supplier qualification.

How Do LDI and mSAP Improve Glass-Fiber PCB Manufacturing?

Modern circuit fabrication increasingly relies on precision imaging and advanced copper formation when conventional subtractive processing becomes restrictive.

LDI for precision imaging

Laser Direct Imaging (LDI) exposes circuit patterns directly onto the photosensitive material.

For glass-fiber PCB production, LDI can support tighter control of:

• Circuit imaging
• Layer registration
• Pattern compensation
• Fine-pitch circuitry
• HDI structures

Hongda integrates LDI into its advanced PCB manufacturing process for high-density circuit fabrication.

mSAP for fine-line circuitry

Modified Semi-Additive Processing can be used when the design requires finer conductor geometries than a conventional subtractive process can comfortably deliver.

Its value becomes more significant for:

• High-I/O packages
• Fine-pitch BGA routing
• HDI
• High-density multilayer PCBs
• Advanced interconnect structures

The process should nevertheless be selected according to the design’s actual geometry and manufacturing tolerance rather than simply because mSAP is a newer technology.

What Role Does Laser Drilling Play in Glass-Fiber PCB Fabrication?

Laser drilling is particularly important when a glass-fiber PCB requires microvias or other small interconnect features.

The challenge is not only creating a small opening.

The manufacturer must control:

Diameter + depth + taper + position + copper interface + dielectric condition

Glass reinforcement can influence drilling behavior because the laser interacts with both resin and glass regions.

An inappropriate process window can produce:

• Incomplete dielectric removal
• Excessive taper
• Poor via landing
• Resin residue
• Damaged copper
• Inconsistent via geometry

Hongda’s manufacturing portfolio includes laser microdrilling and HDI structures, with published process capability extending to advanced microvia applications.

For a new design, the most useful qualification evidence is a cross-section showing the actual via structure rather than a simple statement of minimum laser diameter.

How Does Lamination Affect Glass-Fiber PCB Reliability?

Lamination determines how the individual copper and dielectric layers become one mechanically stable PCB structure.

For glass-fiber reinforced multilayer boards, lamination must manage:

• Resin flow
• Pressure
• Temperature
• Vacuum
• Layer registration
• Copper distribution
• Prepreg construction
• Finished dielectric thickness

The engineering objective is consistent bonding without creating hidden defects.

Potential problems include:

Resin starvation

Insufficient resin flow can leave areas around dense copper structures inadequately bonded.

Voids

Entrapped air or process-related voids can weaken the laminate structure and become reliability risks.

Delamination

Poor bonding or excessive thermal/mechanical stress can produce separation between laminate interfaces.

Dimensional movement

The composite structure can move during thermal processing, affecting layer registration and final dimensions.

For this reason, lamination should be considered a design-to-manufacturing interface, not merely a production step.

How Does PCB Glass Fiber Manufacturing Control Dimensional Stability?

Dimensional stability is one of the most important manufacturing considerations for multilayer glass-fiber PCBs.

The final board dimension is influenced by:

• Glass-fiber architecture
• Resin system
• Copper distribution
• Layer count
• Lamination history
• Board thickness
• Thermal exposure
• Mechanical processing

A supplier therefore needs to account for material movement during fabrication instead of assuming that the dimensions in the CAD file will remain unchanged throughout production.

For demanding boards, engineering controls can include:

1. Material characterization
2. Symmetrical stackup construction
3. Copper balancing
4. Registration compensation
5. Controlled lamination
6. Post-lamination dimensional inspection
7. Final outline verification

Hongda publishes dimensional-precision capability for high-precision PCB production and uses engineering and automated manufacturing controls to manage demanding board geometries.

What Inspection Methods Should a Glass Fiber PCB Supplier Provide?

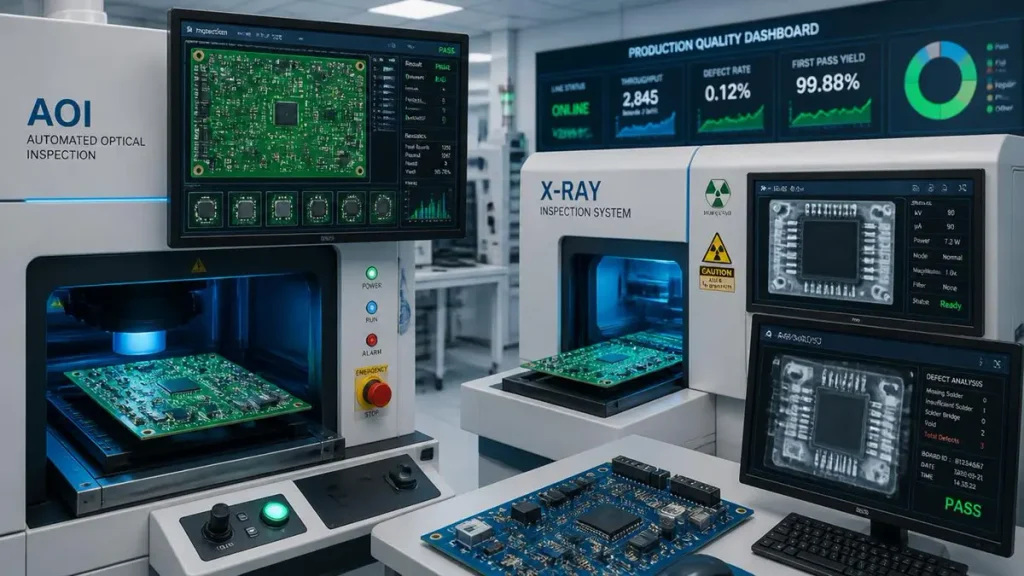

PCB Quality Control Lab with AOI and X-Ray Inspection Systems

Inspection should be matched to the failure mechanisms of the board.

A practical inspection structure includes:

Shenzhen Hongda identifies AOI, X-ray, electrical testing and reliability verification within its PCB production and inspection workflow.

The buyer should request inspection records relevant to the actual PCB rather than accepting a generic “100% inspection” statement.

What Materials Can Be Used for a Glass-Fiber PCB?

Glass-fiber PCBs are not limited to one universal FR-4 formulation.

Depending on the application, engineers may evaluate:

• Standard FR-4
• High-Tg FR-4
• Low-loss glass-fiber laminates
• High-speed laminate systems
• Low-CTE materials
• Halogen-free glass-fiber laminates
• Specialized resin systems

The correct material depends on the application’s:

• Operating temperature
• Thermal cycling
• Signal speed
• Frequency
• Mechanical loading
• Layer count
• Reliability target
• Manufacturing constraints

For example, a general industrial control board may not justify the cost of a premium low-loss laminate, while a high-speed communication board may require tighter dielectric and copper-loss control.

Material selection should therefore be based on the complete engineering requirement rather than the phrase “glass fiber PCB” alone.

How Does a Glass Fiber PCB Manufacturer Support High-Speed Designs?

For high-speed glass-fiber PCBs, material selection and manufacturing process control must work together.

The key engineering variables include:

• Dielectric thickness
• Material Dk/Df
• Glass style
• Resin distribution
• Copper roughness
• Trace width
• Trace spacing
• Reference-plane geometry
• Via structure
• Layer registration

A nominal impedance value such as 100 Ω differential is not enough to define a manufacturing requirement.

The PCB specification should also establish:

Target impedance + tolerance + stackup + copper thickness + dielectric construction + routing geometry

For demanding high-speed designs, Hongda’s published technology portfolio includes low-loss materials, controlled-impedance fabrication and high-speed PCB engineering support.

How Should Buyers Select a Glass-Fiber PCB Supplier?

Supplier selection should follow the engineering risk of the project.

Step 1: Confirm the laminate

Specify the exact material grade instead of simply writing “FR-4.”

Step 2: Confirm the construction

Define:

• Layer count
• Finished thickness
• Copper weight
• Prepreg/core construction
• Via architecture

Step 3: Confirm the manufacturing geometry

Define:

• Minimum trace/space
• Hole sizes
• Microvia dimensions
• Registration requirements
• Finished-board tolerance

Step 4: Confirm inspection

Determine whether the project requires:

• AOI
• X-ray
• Microsection
• Electrical test
• Impedance testing
• Reliability qualification

Step 5: Evaluate engineering support

A capable supplier should identify manufacturability risks before production.

Step 6: Compare total cost

The lowest initial quotation is not necessarily the lowest manufacturing cost.

A supplier that reduces yield, engineering changes and production failures can produce a lower total cost of ownership even when its initial unit price is not the lowest.

What Should a Glass-Fiber PCB RFQ Include?

A complete RFQ helps the manufacturer quote accurately and prevents avoidable engineering questions.

Include:

PCB Construction

• Board dimensions
• Layer count
• Finished thickness
• Copper thickness
• Laminate grade
• Prepreg/core structure
• Surface finish
• Solder mask

Circuit Requirements

• Minimum trace/space
• Hole diameter
• Via structure
• Microvia requirement
• Via-in-pad
• Controlled impedance
• Back drilling, if applicable

Quality Requirements

• IPC class
• Electrical testing
• AOI
• X-ray
• Microsection
• Reliability testing
• Dimensional inspection

Production Information

• Prototype quantity
• Pilot quantity
• Mass-production quantity
• Annual demand
• Target delivery
• Packaging requirements

Files

Provide, where available:

• Gerber
• ODB++
• IPC-2581
• Drill files
• Fabrication drawing
• Stackup
• Impedance requirements

The more complete the RFQ, the less likely the quotation will be based on assumptions.

How Does Shenzhen Hongda Circuit Support Custom Glass-Fiber PCB Projects?

Shenzhen Hongda Circuit Technology Co., Ltd. combines PCB fabrication, engineering review and quality-control processes for customers requiring custom circuit-board production.

The company has more than ten years of experience in PCB fabrication and SMT assembly and publishes capabilities covering conventional and advanced PCB manufacturing.

For glass-fiber PCB projects, the engineering workflow can focus on:

Material Selection

→ Stackup Review

→ DFM Analysis

→ Registration Planning

→ Drilling Strategy

→ Lamination Evaluation

→ Circuit Fabrication

→ Inspection

→ Electrical Testing

→ Production Validation

Hongda’s published production technology includes LDI, laser drilling, HDI, mSAP, precision plating, AOI, X-ray and electrical testing.

For customers with complex multilayer or high-density requirements, the engineering team can review the design before production to identify potential issues related to material construction, interconnection, manufacturability and reliability.

Why Is Engineering Review Important Before Ordering a Glass-Fiber PCB?

A manufacturing quotation should begin with the question:

Can the design be produced repeatedly within the required specification?

Engineering review can identify problems such as:

• Incompatible material construction
• Excessive layer-to-layer registration risk
• Difficult copper distribution
• High-risk via structures
• Insufficient manufacturing margins
• Unbalanced multilayer construction
• Unnecessary fine-line requirements
• Testing requirements that were not defined in the original RFQ

Early DFM review is particularly valuable for prototype-to-production programs because a design that works on a single prototype may still require process optimization before stable volume production.

What Industries Use Custom Glass-Fiber PCBs?

Glass-fiber reinforced PCBs are used across a wide range of electronic systems because the material family provides a mature combination of mechanical and electrical performance.

Typical applications include:

• Automotive electronics
• Industrial control
• Medical electronics
• Telecommunications
• Networking equipment
• Power electronics
• Instrumentation
• Consumer electronics
• Aerospace electronics
• High-speed computing

The appropriate laminate and construction should be selected according to the specific operating environment rather than application category alone.

For example, an automotive PCB exposed to thermal cycling may require a different laminate strategy from a low-cost industrial controller, even though both may use a glass-fiber reinforced PCB.

What Are the Key Advantages of Working With a Custom Glass-Fiber PCB Manufacturer?

The main advantage is not simply access to fiberglass PCB material.

It is the ability to connect material selection with manufacturing execution.

A qualified manufacturing partner can help you manage:

• Material availability
• Stackup feasibility
• Registration
• Drilling
• Lamination
• Copper formation
• HDI processing
• Inspection
• Electrical testing
• Prototype validation
• Production scaling

This reduces the gap between what the PCB designer specifies and what the factory actually builds.

For procurement teams, that can translate into fewer engineering changes, clearer quotations and a more predictable production transition.

Glass-Fiber PCB Manufacturer Selection Checklist

Before approving a supplier, verify the following:

• Exact laminate grade confirmed
• Glass-fiber construction confirmed
• Resin system confirmed
• Layer count capability verified
• Board thickness capability verified
• Copper thickness capability verified
• Minimum trace/space verified
• Mechanical drilling capability verified
• Laser drilling capability verified where required
• HDI capability verified where required
• Lamination process reviewed
• Registration capability verified
• AOI available
• X-ray available where required
• Microsection capability available
• Electrical test defined
• Impedance testing defined where applicable
• DFM review available
• Prototype capability confirmed
• Production capacity confirmed
• Quality certifications reviewed
• Traceability requirements agreed

What Makes a Glass-Fiber PCB Supplier Different From a Generic PCB Supplier?

The difference is the depth of engineering control applied to the laminate and manufacturing process.

A generic supplier may quote a PCB based on:

Layer Count + Thickness + Copper + Quantity

A technically stronger supplier evaluates:

Material + Glass Construction + Stackup + Geometry + Registration + Drilling + Lamination + Plating + Inspection + Reliability

That difference becomes increasingly important as the board becomes thinner, thicker, denser, higher-layer-count or more sensitive to dimensional variation.

For buyers sourcing custom fiberglass PCB production, the supplier’s ability to explain how the manufacturing process will control the specific risks of the design is one of the most valuable qualification criteria.

Glass-Fiber PCB Manufacturing FAQ

Request a Glass-Fiber PCB Quote

Whether you need a custom fiberglass PCB, FR4 glass fiber PCB, multilayer board or an HDI design using glass-fiber reinforced laminate, the manufacturing process should be matched to your actual engineering requirements.

Shenzhen Hongda Circuit Technology Co., Ltd. provides PCB fabrication and engineering support from prototype development through production.

Send your Gerber files, stackup or preliminary specifications for engineering review.

Request a Glass-Fiber PCB Quote

Recommended RFQ information:

• PCB files
• Board dimensions
• Layer count
• Material / laminate grade
• Finished thickness
• Copper thickness
• Minimum trace/space
• Via requirements
• Surface finish
• Quantity
• Testing requirements
• Delivery target

Engineering first. Manufacturing second. Reliable production throughout.

Request a Glass-Fiber PCB Quote → Email: pcb@pcbkr.com

About Author

David Chen https://www.linkedin.com/in/pcbcoming
David Chen boasts an extensive professional background in PCBA manufacturing, PCBA testing, and PCBA optimization, with specialized expertise in high-precision PCBA fault analysis and rigorous PCBA reliability testing. The author has worked with high-layer-count server PCB fabrication, ultra-low-loss backplane stackups, and thermo-mechanical reliability optimization for AI infrastructure projects involving 112G and 224G PAM4 architectures. Skilled in complex circuit design and cutting-edge advanced PCB manufacturing processes, he delivers solutions that elevate product durability and performance across industrial applications. His technical articles focusing on PCBA manufacturing workflows and testing methodologies are widely cited by industry peers, research institutions, and technical platforms, solidifying his reputation as a recognized technical authority in the global circuit board manufacturing sector.
