2026 Wearable PCB Substrates (PI / LCP / FR4 Hybrid) Performance & Reliability Whitepaper
Powered by mSAP / HVLP5 / M9 Advanced Processing | Shenzhen Hongda Circuit Technology Co., Ltd.

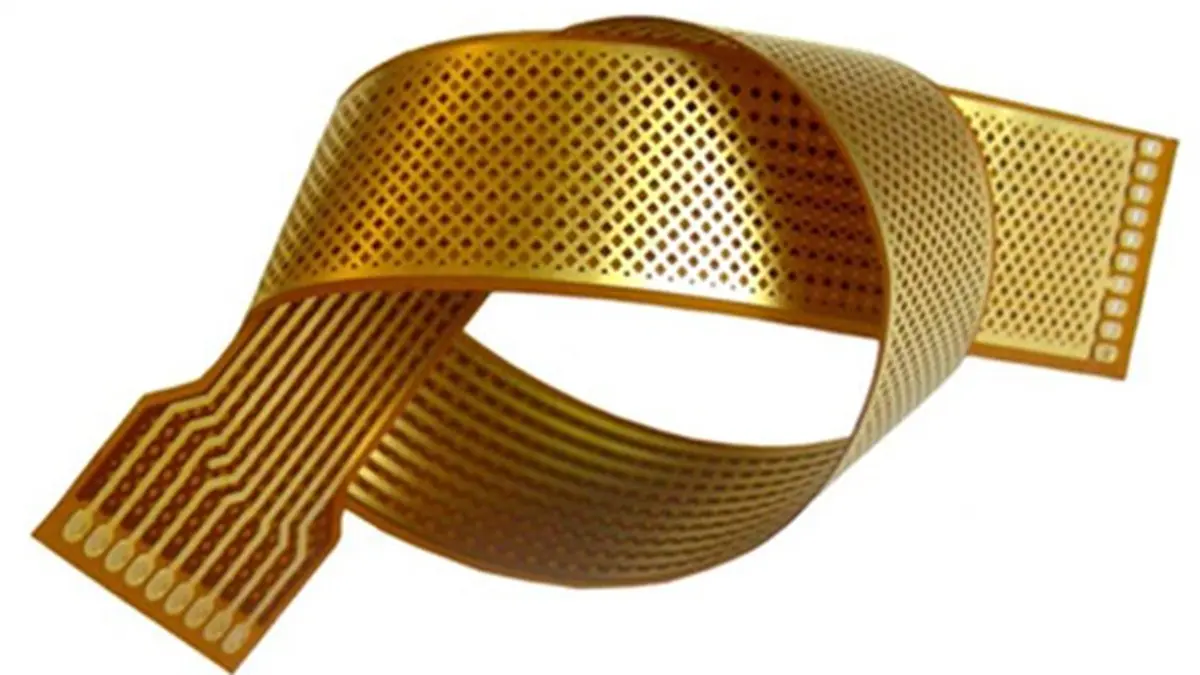

Our Company & 2026 Processing Capabilities
Shenzhen Hongda Circuit Technology Co., Ltd. is a professional manufacturer specializing in high‑end FPC, rigid PCBs, and rigid‑flex circuits. In 2026, we have fully implemented our exclusive wearable‑optimized modified semi‑additive process (mSAP), HVLP5 ultra‑low‑profile copper foil, and M9 ultra‑low‑loss material system. We reliably achieve 15μm line/space, Ra < 1.5μm copper surface, and ±3% impedance control — delivering high‑consistency, high‑yield manufacturing solutions for 5G / 6G / mmWave wearable devices.
Core Material Properties (PI / LCP / FR4 Hybrid) – 2026 Hongda Standard
| Item | PI (Polyimide) | LCP (Liquid Crystal Polymer) | FR4 Hybrid |
|---|---|---|---|
| Dk/Df @ 1GHz | 3.2–3.5 / 0.002–0.003 | 2.8–3.0 / 0.001–0.002 (40% lower loss than PI) | 4.2–4.8 / 0.015–0.025 |
| CTE (XY, ppm/℃) | 30–50 | 3–17 (best copper match) | 18–25 |
| Water Absorption | 1.5%–3.0% | < 0.04% (near zero) | 0.2%–0.5% |
| Flex Life (R=1mm) | > 100,000 cycles; up to 200,000 for modified grades | 50,000–80,000 cycles | < 10,000 cycles |
| 2026 Upgrade | mSAP + nano‑ceramic coating | M9 + HVLP5 + mSAP | Local LCP/PI lamination |
Signal Integrity for 2026 High‑Speed Wearables
High‑Frequency Performance (Hongda mSAP + HVLP5 Production Data)
- Attenuation at 28GHz: LCP 0.25dB/cm < PI 0.42dB/cm < FR4 Hybrid 1.1dB/cm
- Impedance Tolerance (50Ω): LCP ±3%; PI ±5%; FR4 Hybrid ±8%
- BER at 112Gbps: LCP < **0.01%** (meets Rubin spec); PI 0.1%–0.5%; FR4 Hybrid > 1% (not feasible)
Humidity Impact (85% RH / 1000h)
- LCP: ΔDk < 0.1, no drift
- PI: ΔDk = 0.5–0.8, 15–25% shift
- FR4 Hybrid: ΔDk > 1.0, severe degradation
Mechanical Flexibility & Bend Performance (Daily Wear Simulation)
- Minimum Bend Radius: PI 0.5–1.0mm; LCP 1.5–2.0mm; FR4 Hybrid > 20mm
- Flex Life (R=1.5mm): PI 120,000 cycles (3+ years); LCP 70,000 cycles (2 years); FR4 Hybrid < 5,000 cycles
- 2026 Ultra‑Thin Capability: PI down to 12.5μm; LCP down to 25μm; FR4 Hybrid down to 0.4mm — reducing device thickness by 20–30%
Environmental Reliability (Temperature, Sweat, Vibration, Aging)
| Test Condition | LCP | PI | FR4 Hybrid |
|---|---|---|---|
| Temperature Cycle (−40℃ to 85℃, 1000 cycles) | No delamination | Slight delamination | 20% delamination risk |
| Sweat Resistance (60℃, 1000h) | Insulation > 10¹⁴Ω | 10¹⁰–10¹²Ω | < 10⁹Ω |
| Vibration (10–1000Hz, 500h) | 0 solder joint failure | 5% failure rate | 15% failure rate |
| 85℃ / 85% RH Aging (2000h) | Property retention > 95% | 80–85% retention | 60–70% retention |
Cost & Scalability (2026 Hongda Mass Production)
- Substrate Cost (USD/m² @ 25μm): FR4 Hybrid 40–60 < PI 80–120 < LCP 250–350
- Production Yield: FR4 Hybrid 96–98%; PI 92–95%; LCP 80–85%
- BOM Share: FR4 Hybrid 5–8%; PI 10–15%; LCP 25–35%
- Supply Chain: PI & FR4 Hybrid: fully domestic & stable; LCP: limited global supply
2026 Optimal Material Selection for Wearables (Hongda Recommendation)
- Mainstream Smart Bands ($20–50)PI (25μm) + FR4 Hybrid rigid section → high flex life, low cost, IP67 sweat resistance
- Premium 5G / mmWave Smartwatches ($300+)LCP (25μm) + mSAP / HVLP5 → 28GHz low loss, > 70,000 flex cycles, IP68, 3+ year durability
- Foldable Wearable DisplaysModified PI (12.5μm) + LCP reinforcement → bend radius < 1mm, > 200,000 cycles
- Medical Wearables / ECG PatchesBiocompatible LCP → near‑zero moisture absorption, 1000h sweat resistance, ISO 10993 compliant
- Cost‑Effective Flagship DesignFR4 core + local LCP antenna + PI flex tails → 20% lower cost than full LCP, 80% of high‑frequency performance
FAQs (2026 Hongda Processing Edition)
- Why is LCP better than PI for 5G wearable antennas?LCP delivers 40% lower high‑frequency loss, near‑zero water absorption, and stable Dk/Df at mmWave bands. Paired with HVLP5, high‑frequency loss drops an additional 30%.
- Can FR4 Hybrid replace PI for dynamic flexible parts?No. FR4 Hybrid has a minimum bend radius over 20mm and flex life below 10,000 cycles. It is only suitable for rigid backbone structures.
- How does mSAP improve wearable PCBs in 2026?mSAP enables 15μm line/space (vs. 50μm for traditional etching), tripling integration density and greatly boosting signal integrity in compact wearable designs.
Conclusion
Backed by our full suite of 2026 advanced processes — mSAP, HVLP5, and M9 — Shenzhen Hongda Circuit provides three mature, scalable solutions for wearables:
- PI for high‑volume flexible designs
- LCP for premium high‑frequency and harsh‑environment devices
- FR4 Hybrid for cost‑optimized rigid‑flex products
We help customers build next‑generation wearables that are thinner, more reliable, longer‑lasting, and commercially competitive.
