Ultra-Thin PCB Testing: A Complete Quality Control Guide for Buyers and Engineers

Ultra-Thin PCB Testing is the decisive core of ultra-thin PCB procurement for finished boards with a thickness below 0.2mm, far exceeding the importance of conventional procurement factors including price and lead time. While cost and delivery cycles are essential reference indicators for component sourcing, they are never the full measure of a qualified ultra-thin PCB supplier. The biggest hidden risk in ultra-thin PCB mass production and application lies in professional and rigorous performance verification.

Ultra-thin circuit boards face unique structural defects and process challenges throughout manufacturing and testing. Thin core substrates are prone to warping during drilling processing, positional shifting during lamination, and cracking when subjected to standard testing pressures—issues that rarely occur in conventional PCBs but easily lead to product failure in ultra-thin models. Notably, a supplier’s capability to etch 50μm fine lines does not equate to its ability to guarantee product quality. Without standardized testing, manufacturers cannot verify whether these fine lines remain intact, maintain qualified insulation performance, and possess stable structural reliability.

This testing capability becomes the key benchmark for vendor screening, especially for procurement managers and hardware engineers who source PCBs for wearables, medical sensors, foldable devices, and high-density portable electronics. In high-precision and high-reliability application scenarios, a complete and standardized testing protocol fundamentally distinguishes reliable long-term cooperative suppliers from unqualified vendors that may cause on-site product failures and liability risks in the future.

At Shenzhen Hongda Circuit Technology Co., Ltd. , we have always regarded systematic testing as a core part of production quality records, rather than a perfunctory final inspection step. To eliminate the inherent quality risks of ultra-thin PCBs, our factory implements seven full-process verification stages for every ultra-thin PCB project: electrical testing, AOI automatic optical inspection, X-ray inspection, microsection analysis, dimensional inspection, high-precision thickness measurement, and environmental reliability testing.

Every testing stage generates complete, traceable quality data, and all official test reports are fully open for customer audit and review. This guide elaborates on the detection scope and core value of each testing procedure, analyzes how modern ultra-thin PCB manufacturing technology updates and upgrades testing standards, and clarifies the key testing indicators and qualification requirements that buyers must confirm before issuing official purchase orders.

Electrical Testing for Ultra-Thin PCBs: Ensuring Circuit Integrity Before Assembly

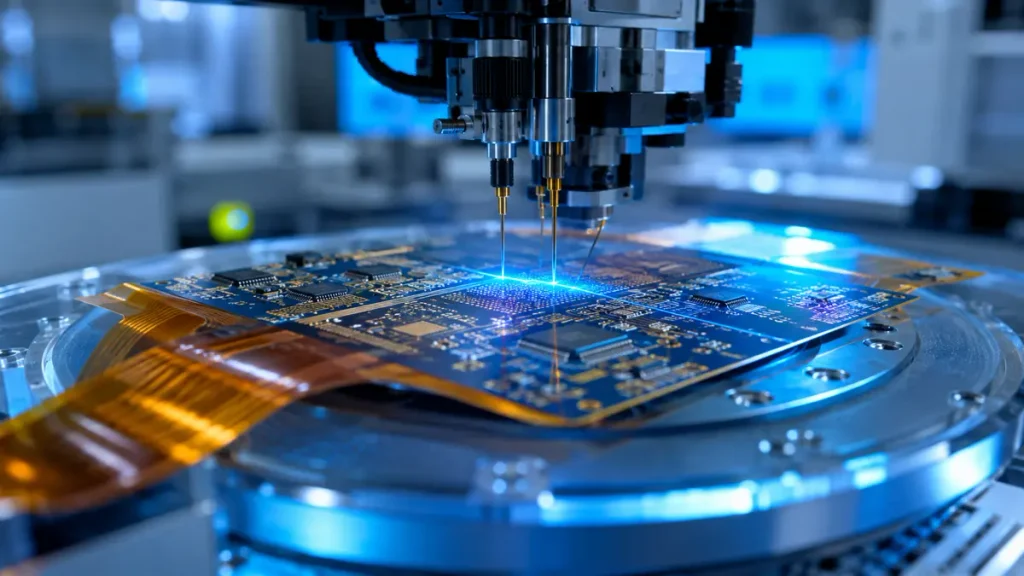

Automated Flying Probe Electrical Testing on Ultra-Thin PCB

Flying Probe Testing vs Fixture-Based Methods for Thin Substrates

Standard bed-of-nails fixtures clamp panels with enough force to bow or crack a 0.1mm core. That is not theoretical—mechanical damage introduced during electrical test is one of the most common hidden defects in ultra-thin PCB supply chains. At our Shenzhen factory, we route thin boards through automated flying probe testers equipped with low-contact-force probes and vacuum-supported staging plates. The probes verify continuity and isolation without stressing the substrate. For higher-volume programs, we design dedicated soft-touch fixtures with reduced pin density and foam backing to distribute pressure evenly across the panel surface.

What buyers should verify during a supplier audit: Ask whether the vendor has modified their electrical test setup for thin materials. If they are using standard fixtures on 0.1mm boards, micro-cracks are likely being introduced after the etching process is complete.

Open Circuit and Isolation Testing in Ultra-Thin PCB Manufacturing

The stated purpose of electrical testing on ultra-thin boards is the same as on standard PCBs—confirm that designated nets conduct and separate nets isolate. But the failure modes differ. On thin cores, plating voids in microvias and hairline trace cracks occur more frequently due to reduced material stability. Our flying probe systems generate netlists directly from customer Gerber data and flag opens, shorts, and incorrect net connections before panels leave the factory. Every ultra-thin PCB lot receives 100% electrical test coverage; we do not rely on sampling for this stage because a single open in a wearable device can scrap an entire assembled unit.

How Advanced Electrical Test Systems Reduce Scrap in 0.1mm Boards

Modern flying probe systems with four-wire Kelvin measurement detect resistance variations that indicate partial cracks, not just full opens. A trace that passes a basic continuity check can still fail in the field if its cross-sectional area has been compromised during handling or thermal stress. We correlate electrical test data with AOI images to trace root causes back to specific process steps. That feedback loop keeps our ultra-thin PCB first-pass yield above industry benchmarks and protects your production schedule from unexpected rework or line-down emergencies.

Automated Optical Inspection (AOI) for Ultra-Thin Boards: Catching Surface Defects Early

High-Resolution AOI for Fine-Line Ultra-Thin PCB Patterns

Ultra-thin PCBs increasingly carry line widths and spaces below 50μm, especially when fabricated on mSAP (modified semi-additive process) lines. Standard AOI cameras miss defects at that scale. Hongda Circuit uses high-resolution AOI platforms with sub-10μm pixel resolution and angled lighting arrays to capture sidewall anomalies on traces and pads. The system compares each panel against the design Gerber in real time, flagging missing copper, broken traces, and shorts between closely spaced conductors that electrical testing might not catch if the short resistance sits below the threshold.

Solder Mask Registration Inspection on Thin Substrates

Solder mask alignment drifts more easily on thin cores because the substrate expands and contracts differently under coating and curing stress. Our AOI coverage includes solder mask registration verification—checking that mask windows align with pads and do not encroach on fine-line spaces. On ultra-thin PCBs, mask misregistration can expose adjacent traces or cover target pads, both of which create assembly defects that are expensive to diagnose after component placement. Catching this at AOI saves the cost of SMT rework.

Why AOI Alone Cannot Guarantee Ultra-Thin PCB Quality

AOI sees only surface features. It cannot verify buried vias, internal layer alignment, or copper thickness inside plated holes. Buyers sometimes assume that a clean AOI report means the board is fully qualified. We treat AOI as a fast, non-destructive filter that removes visible defects before deeper inspection. For ultra-thin multi-layer boards, it is a necessary but insufficient condition for release to shipping.

X-Ray Inspection for Ultra-Thin PCBs: Revealing Hidden Internal Defects

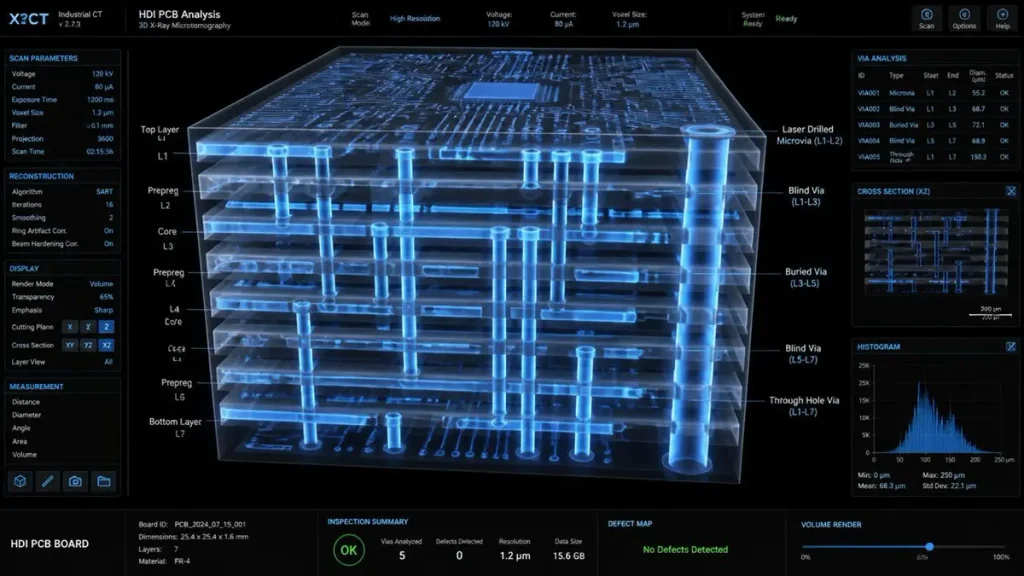

3D X-Ray CT Scan Analysis for Multilayer HDI PCB

Internal Layer Registration Verification in Multi-Layer Thin PCBs

Stacking four or more layers on a core under 0.2mm leaves almost no margin for error. A 25μm shift between layers can break a blind via landing pad or create a latent short. Our 3D X-ray inspection platform captures cross-sectional images without cutting the board, allowing us to measure internal target alignment and layer-to-layer registration on sample panels from each production lot. This is critical for any-layer HDI designs where sequential lamination on thin cores compounds registration error with every press cycle.

Via and Hidden Structure Analysis Without Destructive Testing

X-ray inspection reveals via position, barrel shape, and hidden internal structural conditions invisible to AOI. We use this method to verify that laser-drilled microvias land centrally on target pads and that buried vias do not show barrel cracks or void clusters. Because the test is non-destructive, we can inspect actual production panels rather than relying solely on test coupons, which gives a more accurate statistical picture of lot quality than coupon-based sampling alone.

When Your Ultra-Thin PCB Supplier Should Use X-Ray Inspection

Not every two-layer ultra-thin board needs X-ray. But for multi-layer HDI, rigid-flex transition zones, or any design with blind and buried vias, X-ray should be standard, not optional. When auditing a supplier, ask whether they inspect internal alignment per lot or only during initial qualification. At pcbkr.com, we maintain X-ray inspection as a routine process step for all ultra-thin HDI orders, not a special engineering request that triggers an extra charge.

Microsection Analysis for Ultra-Thin PCBs: Validating Layer Structure at the Microscopic Level

Copper Thickness and Dielectric Layer Verification Process

Microsection—cross-section analysis—remains the only way to directly measure copper thickness in plated through-holes and on surface traces, as well as dielectric thickness between layers. For ultra-thin PCBs, the tolerances are tighter. A 5μm variation in dielectric can shift impedance on RF lines or create unintended capacitive coupling. Our in-house microsection lab prepares samples from production coupons, grinds and polishes them to a mirror finish, and captures images under metallographic microscopes with digital measurement software calibrated to IPC standards.

Via Barrel Quality and Void Detection in Thin Board Cross-Sections

Thin cores have less copper plating area in via barrels, which means voids or thin spots create higher current density and early thermal failure. During microsection analysis, we measure via barrel uniformity, check for voids exceeding IPC-6012 acceptance criteria, and look for cracks initiating at the knee of the hole. These defects are more prevalent in ultra-thin boards because aspect ratios change and plating chemistry behaves differently on substrates with reduced thermal mass.

Resin Recession and Layer-to-Layer Connection Assessment

After lamination, resin flow and curing can leave resin recession or pull-back at via edges, exposing copper to environmental stress. Microsection reveals these conditions before they become field reliability issues. We also use cross-sections to verify layer-to-layer connection quality, ensuring that inner layer copper is properly activated and bonded before outer layers are added. Skipping this step means trusting the lamination press operator’s intuition instead of data.

Dimensional Inspection of Ultra-Thin PCBs: Controlling Warpage and Outline Precision

Board Outline, Hole Position, and Slot Dimension Verification

Dimensional inspection on ultra-thin PCBs starts with automated optical measurement of board outline, hole diameter, hole location, slot dimensions, and feature position. We compare measurements directly against fabrication drawings and Gerber data. On thin materials, routing and punching can create burrs or edge lifting that affect fit into enclosures; our dimensional report flags these conditions against approved tolerances so buyers know the board will seat correctly before it reaches the SMT line.

Warpage and Flatness Measurement Methods for Sub-0.2mm PCBs

Warpage is the enemy of automated assembly. A 0.1mm PCB that bows by 0.3mm will not seat properly in pick-and-place fixtures or reflow ovens. We measure flatness using surface profilometry and shadow moiré techniques on sample panels, recording warpage values against IPC-6012 specifications. For procurement teams, this data is non-negotiable: even if the board passes electrical test, excessive warpage can shut down your SMT line and generate false solder-joint defects during AOI.

How Dimensional Tolerance Impacts Your Assembly Line

Procurement teams often focus on unit price and lead time while assuming dimensional compliance is guaranteed. On ultra-thin PCBs, tolerance stack-up between the board, carrier, and components is tighter. A hole location shifted by 0.05mm can misalign a connector or ground pad. We generate dimensional inspection reports with CPK values so buyers can verify process capability before committing to volume orders, not after receiving the first lot.

Thickness Measurement for Ultra-Thin PCBs: Consistency Across Every Panel

Multi-Point Thickness Measurement Techniques for Thin Substrates

Finished board thickness on ultra-thin PCBs is verified using precision digital micrometers and non-contact gauges at multiple points across the panel surface. We record thickness at the center and corners, as well as over dense copper areas and open fields. Multi-point measurement identifies local thick or thin zones caused by laminate resin flow or copper distribution imbalance—issues that are invisible in single-point checks but create assembly interference in stacked designs.

Finished Board Thickness vs Copper and Dielectric Thickness

While the customer specification usually states finished board thickness, the internal breakdown matters too. Through cross-section inspection, we verify that copper and dielectric thickness meet stack-up requirements. On ultra-thin builds, a supplier might hit the total thickness target while missing individual layer specs, which affects impedance and insulation. Our reports separate finished thickness data from microsection-derived layer data so engineers can validate the full stack-up.

Why Thickness Consistency Matters in Stacked and Flex-Rigid Designs

In stacked designs or flex-rigid assemblies, thickness variation creates pressure points and bending stress. A panel that is 0.18mm on one side and 0.22mm on the other will not flex uniformly and may delaminate under repeated bending. Thickness measurement data from our factory is included in the certificate of conformance for every ultra-thin PCB shipment, giving buyers traceable evidence of consistency from lot to lot.

Reliability Testing for Ultra-Thin PCBs: Proving Long-Term Performance Under Stress

Thermal Cycling and Thermal Shock Testing for Thin PCB Durability

Ultra-thin boards experience higher mechanical strain per degree of temperature change because there is less material to absorb expansion stress. We subject test coupons to thermal cycling (typically -40°C to +125°C) and thermal shock profiles to verify that vias, traces, and layer bonds survive temperature swings. These tests are essential for automotive interior sensors, outdoor IoT devices, and any application where the PCB will experience daily heating and cooling cycles.

Humidity Resistance and Insulation Stability in Harsh Environments

Humidity and climatic storage testing evaluate whether moisture penetrates the thin dielectric and degrades insulation resistance. On ultra-thin PCBs, there is simply less resin between layers, so any micro-crack or void becomes a moisture path faster than on standard boards. We measure insulation resistance before and after humidity exposure to confirm that the board maintains electrical isolation under damp conditions that would trigger failure in an unqualified design.

Peel Strength and Interconnect Stress Testing Standards

Copper adhesion to thin cores is more sensitive to surface preparation chemistry. Peel-strength testing pulls copper foil away from the substrate to verify that the bond exceeds minimum requirements. Interconnect stress testing (IST) or equivalent methods apply current to heat traces and vias cyclically, accelerating the failure mechanisms that appear after years in the field. We run these tests during qualification and on request for critical ultra-thin PCB programs where long-term reliability is a contractual requirement.

Ultra-Thin PCB Testing Coverage Summary: What Buyers Should Verify Before Placing Orders

Why Procurement Teams Choose Shenzhen Hongda Circuit for Ultra-Thin PCB Testing

Sourcing ultra-thin PCBs requires more than a competitive quote. It requires a factory that can generate data proving the boards work. At Shenzhen Hongda Circuit Technology Co., Ltd., our testing infrastructure includes automated flying probe systems with Kelvin measurement, high-resolution AOI for mSAP-level fine lines, 3D X-ray inspection for internal alignment, an in-house microsection laboratory with digital metallographic imaging, precision dimensional measurement including warpage analysis, multi-point thickness verification, and full environmental reliability chambers.

Every ultra-thin PCB order ships with a complete testing dossier: electrical test reports, AOI scan records, dimensional certificates, and reliability data when requested. If you are evaluating suppliers for your next program, start by asking for their standard testing protocol. Then visit pcbkr.com to request a quote or schedule a virtual factory audit. We will show you exactly how we test, what we measure, and why our process gives procurement teams the confidence to release purchase orders without second-guessing quality.
