Flex PCB Materials Guide: Polyimide, Copper Foil, Coverlay and Material Selection
A reliable Flex PCB starts with the right combination of substrate film, copper foil, bonding system, protective coverlay, and local reinforcement. For OEM buyers, selecting these materials requires more than comparing datasheet values: operating temperature, static or dynamic bending, finished thickness, signal requirements, assembly conditions, and production cost must all be considered together. Shenzhen Hongda Circuit Technology Co., Ltd. (PCBKR) supports custom flexible PCB fabrication, material selection, stack-up engineering, prototypes, and production orders for international OEM customers.
1. What Materials Are Used in a Flex PCB?
A flexible printed circuit (FPC) is manufactured by combining conductive copper with flexible dielectric films and protective or reinforcing materials. Unlike a conventional rigid FR-4 PCB, its material system must maintain electrical continuity while accommodating bending, folding, or movement.
The five principal material groups are:
| Material layer | Common materials | Primary function |
|---|---|---|
| Base dielectric | Polyimide (PI), PET, PEN, LCP | Electrical insulation and mechanical flexibility |
| Copper conductor | Rolled annealed (RA), electrodeposited (ED) | Signal and power transmission |
| Bonding system | Acrylic, epoxy, adhesiveless laminate | Copper-to-film and layer bonding |
| Circuit protection | Polyimide coverlay, flexible solder mask | Insulation and environmental protection |
| Local reinforcement | PI, FR-4, stainless steel, aluminum | Connector support and component mounting |
A complete flex PCB specification should also identify copper thickness, dielectric thickness, adhesive thickness, coverlay construction, stiffener dimensions, and the required finished thickness in each functional area.
Material selection starts with the application
Before selecting a material, an OEM engineering team should answer six questions:
- Will the circuit bend once during installation or move repeatedly during operation?
- What are the maximum operating and assembly temperatures?
- What is the available bending radius?
- Does the circuit carry high-speed signals or controlled-impedance transmission lines?
- Will components or connectors be mounted directly on the flexible circuit?
- Are there requirements for flame retardancy, chemical resistance, moisture exposure, or material traceability?
These requirements determine the appropriate combination of base film, copper foil, bonding system, coverlay, and stiffener.
For custom projects requiring fabrication and engineering review, see our custom Flex PCB manufacturing service.
2. Polyimide vs PET: Which Flexible Substrate Should You Choose?
Polyimide (PI) and polyethylene terephthalate (PET) are two common polymer films used in flexible electronic circuits. They serve different application requirements and should not be treated as interchangeable materials.
Polyimide (PI)
Polyimide is the primary substrate choice for most high-reliability flexible circuits because it combines thermal stability, electrical insulation, chemical resistance, and mechanical durability.
Typical applications include:
- Automotive electronic interconnections
- Industrial control systems
- Medical electronic devices
- High-density flexible circuits
- Camera and display interconnections
- Flexible circuits requiring SMT reflow assembly
PI is suitable for applications where the circuit must withstand soldering processes and elevated operating temperatures. However, the allowable temperature depends on the exact PI grade, copper treatment, adhesive system, coverlay, and assembly profile.
Polyester (PET)
PET is generally selected for cost-sensitive applications that do not require the thermal performance of polyimide.
Typical applications include:
- Membrane switches
- Simple control panels
- Low-temperature consumer electronics
- Non-reflow flexible interconnections
- Disposable or low-cost electronic products
PET may provide an economical solution where the circuit experiences limited thermal exposure and does not require demanding solder assembly.
PI vs PET material comparison
| Selection factor | Polyimide (PI) | Polyester (PET) |
|---|---|---|
| Material cost | Higher | Lower |
| Thermal capability | High, grade-dependent | More limited |
| Reflow compatibility | Available for qualified grades and constructions | Generally unsuitable for conventional PCB reflow |
| Dimensional stability | Suitable for demanding flex fabrication | Application-dependent |
| Dynamic flex suitability | Suitable with appropriate construction | Limited and application-specific |
| Electrical insulation | Good | Good |
| Typical applications | Industrial, automotive, medical, high-reliability | Membrane switches, low-cost electronics |
OEM recommendation: Choose PI when soldering, elevated temperatures, repeated movement, or demanding reliability requirements are involved. Consider PET when the design is non-reflow, cost-sensitive, and mechanically less demanding.
Other flexible dielectric materials
Several specialty materials can be considered when standard PI does not satisfy the application requirements.
- PEN: An intermediate option for selected applications requiring a different balance of cost, dimensional stability, and thermal performance.
- LCP: A low-moisture-absorption dielectric used in selected high-frequency and high-speed flexible circuits.
- PTFE: Used in specialized RF and microwave constructions where electrical properties justify the additional material and manufacturing considerations.
These materials are not universal substitutes for PI. Their availability, copper bonding systems, processing requirements, and electrical characteristics must be confirmed against the intended application.

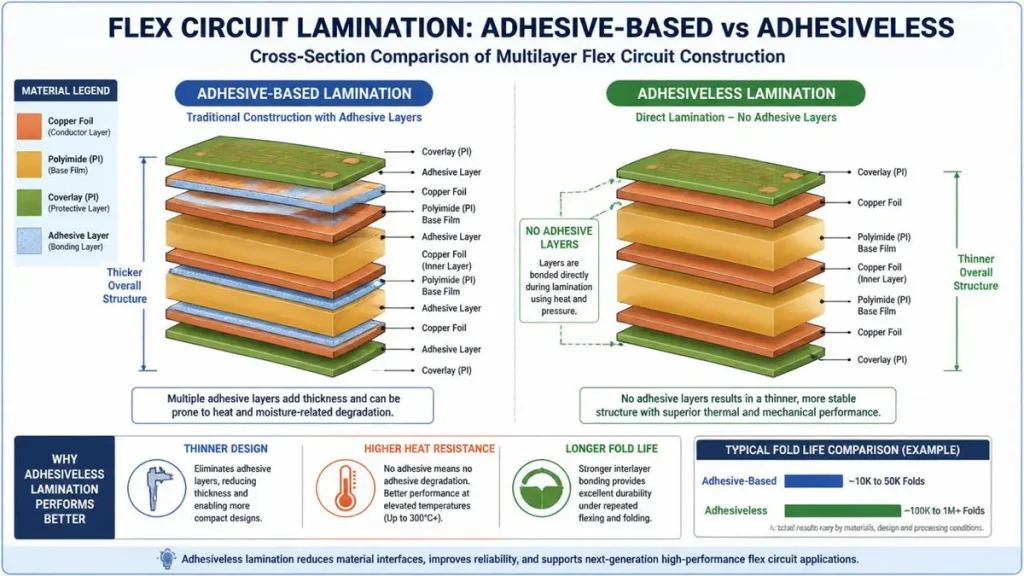

3. Adhesive vs Adhesiveless Flex PCB Materials: What Are the Differences?
The bonding structure between copper and the flexible dielectric has a direct influence on total thickness, dimensional stability, thermal behavior, and mechanical reliability.
Two principal constructions are used in flexible copper-clad laminates (FCCL).
Adhesive-based FCCL
An adhesive-based construction uses a separate bonding layer between copper foil and the PI substrate.
A simplified structure is:
- Copper foil
- Acrylic or epoxy adhesive
- Polyimide base film
- Adhesive, where required
- Copper foil for double-sided constructions
Advantages include:
- Established manufacturing processes
- Broad material availability
- Cost-effective options for conventional designs
- Flexibility in selecting different film and copper combinations
Potential limitations include additional stack thickness, adhesive flow during lamination, thermal expansion differences, and changes in dielectric properties.
Adhesiveless FCCL
Adhesiveless constructions bond copper directly to the polyimide system without a conventional adhesive interlayer between the copper and base film.
Depending on the product, manufacturing methods include casting, metallization, and other direct-bonding technologies.
Advantages can include:
- Reduced total laminate thickness
- Improved dimensional stability in suitable constructions
- Reduced adhesive-related thermal expansion
- More consistent stack-up control for selected fine-pitch designs
- Potentially improved mechanical performance in demanding flex applications
However, adhesiveless does not automatically mean better for every project. Material grade, copper treatment, peel strength, fabrication process, and total cost still matter.
Adhesive vs adhesiveless comparison
| Factor | Adhesive-based | Adhesiveless |
|---|---|---|
| Construction | Separate bonding layer | Direct copper-to-PI bonding system |
| Total thickness | Generally higher | Can be thinner |
| Dimensional stability | Depends on adhesive and process | Often advantageous |
| Thermal behavior | Adhesive-dependent | No conventional FCCL adhesive interlayer |
| Cost | Often more economical | Often higher material cost |
| Suitable applications | Conventional and cost-sensitive flex | Fine-pitch, thin-profile, and demanding constructions |
What should buyers specify?
Do not write only “PI + copper” on a purchasing specification.
Identify:
- PI grade and thickness
- Copper type and thickness
- Adhesive type, if applicable
- Adhesive thickness
- FCCL construction
- Required peel strength
- Finished flex-region thickness
- Reflow and operating-temperature conditions
A supplier should confirm whether the quoted construction matches the approved material system.
4. RA Copper vs ED Copper: Which Copper Foil Is Better for Flex Circuits?
Copper foil is one of the most important material decisions in a flexible circuit because its mechanical behavior directly affects bending reliability.
The two main copper foil categories are rolled annealed (RA) copper and electrodeposited (ED) copper.
Rolled annealed copper
RA copper is manufactured through mechanical rolling and annealing processes. Its elongated grain structure generally provides better ductility for repeated bending.
Common applications include:
- Dynamic flex circuits
- Moving camera modules
- Robotic joints
- Repeatedly operated hinges
- Flexible interconnections exposed to vibration and movement
RA copper is generally the preferred starting point for repeated-flex applications.
The rolling direction must also be considered when the material supplier provides directional mechanical data. Its relationship to the main bending direction should be reviewed during engineering approval.
Electrodeposited copper
ED copper is produced through electrochemical deposition.
It can be suitable for:
- Static bend-to-install circuits
- Flexible interconnections that remain stationary after assembly
- Cost-sensitive designs with limited mechanical movement
- Certain multilayer constructions where mechanical requirements permit its use
ED copper should not automatically be rejected for every flex design. Its suitability depends on the actual bending duty, foil grade, thickness, and tested construction.

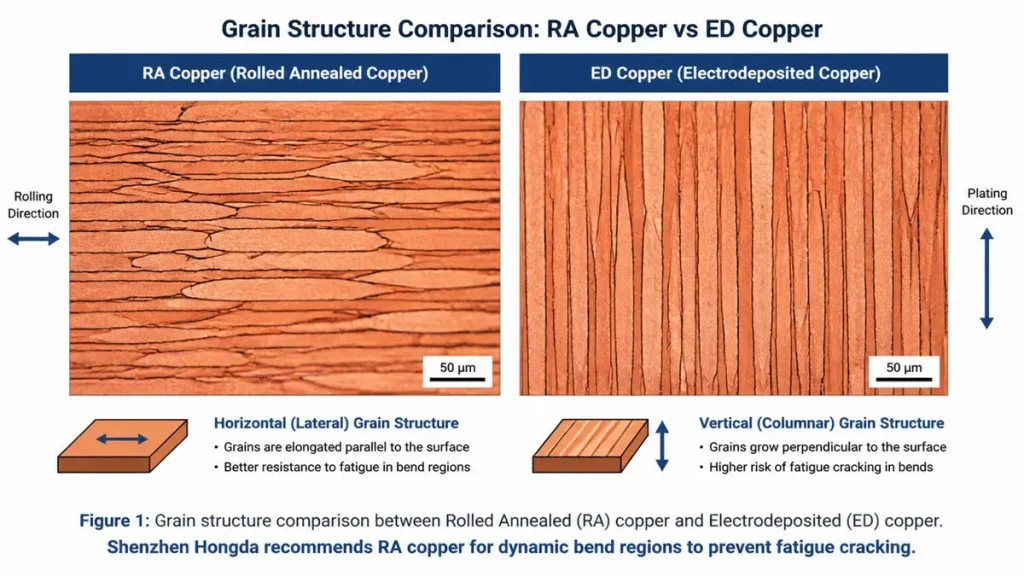

RA vs ED copper comparison
| Property | RA Copper | ED Copper |
|---|---|---|
| Manufacturing method | Rolling and annealing | Electrochemical deposition |
| Grain structure | Elongated | Columnar |
| Ductility | Generally higher | Grade-dependent |
| Dynamic bending | Preferred | Requires careful qualification |
| Static installation | Suitable | Often suitable |
| Cost | Generally higher | Often lower |
| Primary selection factor | Flex fatigue resistance | Cost and static-flex suitability |
A common procurement mistake
Some RFQs specify copper thickness but do not identify copper type.
For example, specifying 18 μm copper does not tell the manufacturer whether the application requires RA or ED copper.
The drawing or material specification should explicitly identify:
- Copper type
- Nominal copper thickness
- Copper location within the stack-up
- Dynamic or static use
- Required bend radius
- Expected operating cycle count
For high-reliability programs, request the copper foil manufacturer’s material documentation and verify that the supplied lot matches the approved specification.
5. How Does Copper Thickness Affect Flex PCB Reliability?
Copper thickness affects electrical resistance, current capacity, etching behavior, total circuit thickness, and mechanical flexibility.
A thicker copper layer can support higher current, but it also increases the mechanical stiffness of the flexible construction.
Common copper thickness specifications
| Copper thickness | Approximate copper weight | Typical design consideration |
|---|---|---|
| 9 μm | 1/4 oz | Very thin conductor applications |
| 12 μm | 1/3 oz | Thin flex and selected dynamic applications |
| 18 μm | 1/2 oz | Common flexible circuit construction |
| 35 μm | 1 oz | Higher current and conventional circuit requirements |
| 70 μm | 2 oz | Selected high-current and special constructions |
These are nominal copper thickness references. The finished conductor thickness can differ because of plating, etching, and the manufacturing process.
Why thinner copper can improve flexibility
During bending, copper experiences tensile and compressive strain.
Reducing copper thickness can reduce the conductor’s contribution to overall flex stiffness. However, it is not sufficient to select the thinnest possible copper.
A thinner conductor also has higher electrical resistance and may require wider traces to satisfy current and temperature-rise requirements.
The correct selection must balance:
- Required current.
- Allowable voltage drop.
- Trace width and routing density.
- Dynamic bending requirements.
- Temperature rise.
- Finished circuit thickness.
Copper thickness and electrical resistance
For a conductor with the same material, length, and width, resistance is inversely proportional to copper cross-sectional area.
The simplified relationship is:
R = ρL/A
Where:
- R = conductor resistance
- ρ = copper resistivity
- L = conductor length
- A = conductor cross-sectional area
This explains why reducing copper thickness without adjusting trace width can increase resistance.
Procurement recommendation
Do not compare two Flex PCB quotations using copper weight alone.
Ask each manufacturer to confirm whether the quoted value is base copper or finished copper, and whether the copper thickness is consistent across the signal, ground, and power layers.
For dynamic flex zones, also evaluate copper type, foil thickness, trace geometry, and the completed stack-up.

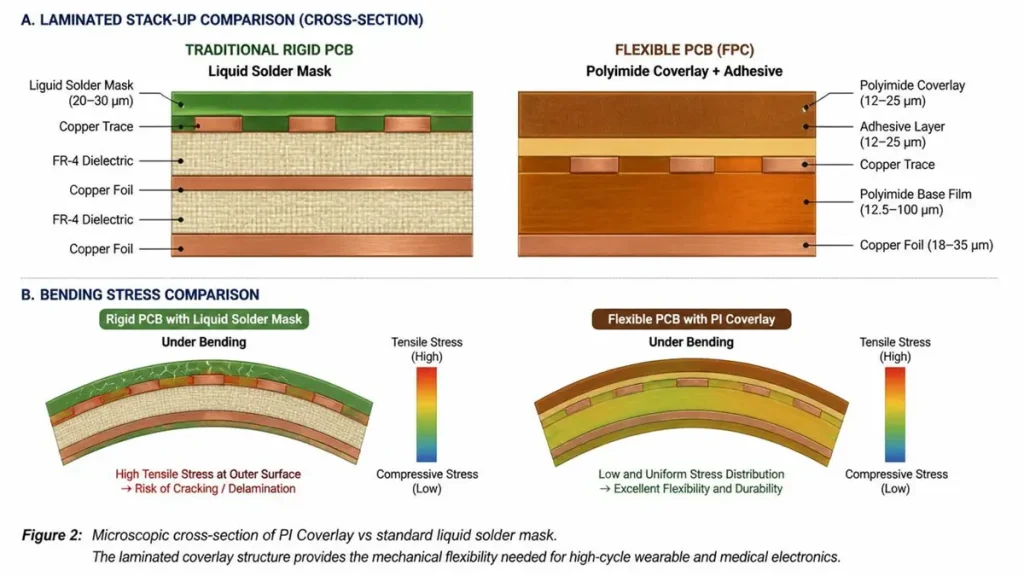

6. Coverlay vs Flexible Solder Mask: Which Protection Layer Should You Specify?
Coverlay protects the exposed copper conductors and provides electrical insulation on the outer surfaces of flexible circuits.
Unlike rigid PCBs, flex circuits cannot automatically use conventional rigid-board solder mask throughout their bending regions.
Polyimide coverlay
A conventional coverlay consists of a polyimide film and a bonding adhesive.
Its functions include:
- Protecting copper traces
- Providing electrical insulation
- Improving mechanical protection
- Supporting repeated bending when properly designed
- Protecting the circuit against environmental exposure
Coverlay openings expose component pads, connector fingers, and other electrical contact areas.
The opening method may involve mechanical punching, laser processing, or other qualified processes depending on geometry and production requirements.
Flexible solder mask
Flexible solder mask is a liquid or photoimageable protective coating formulated for selected flexible circuit applications.
It can offer:
- Fine pad-opening capability
- Thin protective coatings
- Flexible layout integration
- Potential cost advantages in suitable applications
However, flexibility varies by formulation and curing conditions. Conventional rigid-board solder mask should not be assumed suitable for dynamic bending.
Coverlay vs flexible solder mask
| Selection factor | PI Coverlay | Flexible solder mask |
|---|---|---|
| Construction | PI film and adhesive | Applied protective resin |
| Thickness | Film-based construction | Coating-based construction |
| Pad opening | Punching or laser processing | Photoimaging or other qualified methods |
| Mechanical protection | Strong film-based protection | Depends on formulation |
| Dynamic flex | Preferred starting point | Requires qualification |
| Fine-pitch openings | Process-dependent | Can offer advantages |
| Application | Flexible and dynamic zones | Selected static or less demanding zones |
What buyers should check
A frequent source of manufacturing problems is specifying a coverlay without defining its pad-opening requirements.
The purchasing drawing should identify:
- Coverlay film thickness
- Adhesive thickness
- Opening dimensions
- Pad exposure requirements
- Coverlay-to-copper registration
- Clearance from the bending zone
- Surface protection requirements around connectors
For high-density component areas, the manufacturer should review whether conventional coverlay, photoimageable coverlay, or a hybrid protection structure is more suitable.
7. What Stiffener Materials Are Used in Flexible PCBs?
A stiffener is a local reinforcement layer bonded to a selected area of a flexible circuit.
It does not convert the entire board into a rigid PCB. Instead, it provides mechanical support where flexibility is not required.
Typical locations include:
- ZIF connector interfaces
- FFC connector insertion tails
- SMT component mounting areas
- BGA mounting areas
- Screw mounting points
- Areas requiring controlled flatness
Common stiffener materials
| Stiffener | Main advantage | Typical application |
|---|---|---|
| Polyimide | Thin and flexible | ZIF connector thickness control |
| FR-4 | Good mechanical rigidity | SMT and component support |
| Stainless steel | High mechanical strength | High-load reinforcement |
| Aluminum | Rigidity and thermal conduction | Selected thermal and structural zones |
| PET | Economical reinforcement | Low-temperature, non-reflow applications |
FR-4 stiffener
FR-4 stiffeners are commonly selected when the flexible circuit needs a rigid backing for component assembly.
They are useful for supporting:
- SMT components
- Connectors
- Dense component areas
- Mechanical fastening points
Polyimide stiffener
PI stiffeners are useful where the final thickness must be controlled within a relatively thin profile.
They are frequently considered for connector insertion areas and flexible assemblies with restricted space.
Metal stiffeners
Stainless steel and aluminum can provide higher rigidity.
Aluminum may also help spread heat in selected designs, but it introduces additional considerations involving insulation, grounding, bonding, and mechanical integration.
The most important ZIF connector specification
For ZIF connectors, the finished insertion thickness must match the connector manufacturer’s specification.
The total thickness may include:
- Base PI film
- Copper conductor
- Coverlay film
- Coverlay adhesive
- Stiffener
- Stiffener bonding adhesive
- Surface finish where applicable
Do not specify only the stiffener thickness.
The manufacturer should confirm the finished insertion thickness and its tolerance against the actual connector datasheet.
Also ensure that the stiffener edge does not create an unintended bending point. A sudden change in stiffness can concentrate stress and contribute to coverlay or copper damage.
8. How Do Material Thickness and Stack-Up Affect Flex PCB Bend Radius?
The bending behavior of a flexible circuit is determined by the complete material construction, not simply the thickness of its PI substrate.
A flex stack-up can contain:
- Copper layers
- PI dielectric films
- Adhesive layers
- Coverlay films
- Coverlay adhesives
- Bonding films
- Local reinforcement
All of these components contribute to the finished mechanical structure.
Why total thickness matters
A thicker flexible section generally requires a larger bend radius for the same bending strain.
For a simplified bending model:
ε ≈ y/R
Where:
- ε = bending strain
- y = distance from the neutral axis
- R = bend radius
The further a copper conductor is from the neutral axis, the greater its bending strain for the same radius.
This is why stack-up symmetry and copper placement are important.
Symmetrical vs asymmetrical construction
A symmetrical stack-up can help keep the neutral axis near the center of the construction.
An asymmetrical stack-up may shift the neutral axis and create different strain levels in different copper layers.
For multilayer designs, engineering should evaluate:
- Copper thickness on each layer
- Dielectric thickness
- Adhesive distribution
- Coverlay thickness
- Copper density
- Position of signal and ground layers
Material thickness example
Consider a flexible section containing:
| Layer | Illustrative thickness |
|---|---|
| Top PI coverlay | 25 μm |
| Top coverlay adhesive | 25 μm |
| Top RA copper | 18 μm |
| PI core | 25 μm |
| Bottom RA copper | 18 μm |
| Bottom coverlay adhesive | 25 μm |
| Bottom PI coverlay | 25 μm |
| Total | 161 μm |
This is an illustrative construction, not a universal PCBKR production specification.
It demonstrates why the actual bend calculation must use the complete flex-region thickness.
What should be specified in an RFQ?
Provide:
- Finished flex-region thickness
- Required bending radius
- Static or dynamic application
- Number of conductive layers
- Copper type and thickness
- Expected movement direction
- Expected bend cycle count
- Whether the bend is formed during installation or during normal operation
The final allowable bend radius must be confirmed against the actual material construction and mechanical test requirements.
9. Which Flex PCB Materials Are Suitable for Static and Dynamic Bending?
Static and dynamic flex circuits have different mechanical requirements.
Treating them as the same application can result in material selection errors and premature field failures.
Static flex
Static flex, also called flex-to-install, is bent during installation and generally remains in the installed position.
Typical applications include:
- Internal display connections
- Camera interconnections
- Folded electronic assemblies
- Compact product wiring
- Interconnections between fixed circuit sections
Material selection may prioritize:
- Total thickness
- Installation bend radius
- Assembly temperature
- Cost
- Dimensional stability
RA or ED copper may be considered depending on the actual construction and mechanical requirements.
Dynamic flex
Dynamic flex circuits repeatedly move during product operation.
Typical applications include:
- Robotic joints
- Moving camera assemblies
- Repeatedly operated hinges
- Industrial automation
- Continuously moving interconnections
Material selection should place greater emphasis on:
- RA copper
- Copper thickness
- Bend radius
- Neutral-axis position
- Adhesive system
- Coverlay compatibility
- Trace geometry
- Fatigue testing
Static vs dynamic material selection
| Requirement | Static flex | Dynamic flex |
|---|---|---|
| Copper type | RA or qualified ED | RA generally preferred |
| Copper thickness | Application-dependent | Thinner copper often advantageous |
| Base film | PI or qualified alternative | PI commonly preferred |
| Bonding system | Adhesive or adhesiveless | Adhesiveless deserves evaluation |
| Coverlay | Based on installation requirements | PI film coverlay generally preferred |
| Bend radius | Installation-specific | Repeated-motion-specific |
| Validation | Installation and assembly testing | Defined cycle-life testing |
Why cycle count must be specified
A statement such as “high-flexibility PCB” is not a sufficient engineering requirement.
The buyer should define:
- Expected number of cycles.
- Minimum bending radius.
- Bending angle.
- Bending frequency.
- Test speed.
- Environmental temperature.
- Electrical continuity monitoring criteria.
- Failure definition.
For example, a circuit designed for 10,000 cycles cannot automatically be assumed suitable for 1,000,000 cycles.
The completed construction must be validated under the actual application conditions.
10. How Do You Select Flex PCB Materials for High-Temperature Applications?
High-temperature applications require consideration of both operating conditions and assembly processes.
A material that withstands a short soldering exposure may not necessarily withstand continuous operation at the same temperature.
Three temperature conditions to evaluate
1. PCB assembly temperature
The material system must tolerate the actual SMT reflow profile, including peak temperature and exposure duration.
2. Continuous operating temperature
The PI film, adhesive, copper interface, coverlay, and stiffener bonding system must remain suitable throughout the expected operating life.
3. Environmental temperature cycling
Temperature changes can create differential expansion between the copper, dielectric, adhesive, and local reinforcement.
These differences can contribute to delamination, dimensional movement, and electrical reliability problems.
Material selection considerations
| Material | High-temperature selection considerations |
|---|---|
| PI film | Verify exact grade and thermal rating |
| RA copper | Confirm foil grade and bonding compatibility |
| Acrylic adhesive | Verify reflow and continuous-temperature suitability |
| Epoxy adhesive | Confirm cure system and thermal performance |
| Adhesiveless FCCL | Evaluate for demanding thermal and dimensional requirements |
| PI coverlay | Verify film and adhesive specifications |
| FR-4 stiffener | Check Tg and assembly temperature compatibility |
| Metal stiffener | Review bonding, insulation, and thermal expansion |
Avoid a common purchasing mistake
Do not use the base film’s maximum temperature rating as the finished PCB’s operating temperature rating.
The complete material system determines the actual thermal limitation.
For automotive, industrial, aerospace, or medical applications, request the exact manufacturer datasheets and establish acceptance criteria for the complete construction.
11. Which Materials Are Suitable for High-Frequency and Low-Loss Flex PCBs?
High-frequency flexible circuits require careful control of dielectric properties, conductor geometry, copper surface characteristics, and the complete stack-up.
PI remains a common flexible dielectric, but not all PI grades have identical electrical characteristics.
For demanding RF, microwave, or high-speed applications, specialty materials such as LCP and selected PTFE-based constructions may be evaluated.
Electrical parameters buyers should compare
| Parameter | Why it matters |
|---|---|
| Dielectric constant (Dk) | Influences impedance and propagation velocity |
| Dissipation factor (Df) | Influences dielectric signal loss |
| Copper roughness | Affects conductor loss at high frequencies |
| Dielectric thickness | Influences impedance and coupling |
| Adhesive properties | Contributes to effective dielectric behavior |
| Copper geometry | Affects resistance and transmission-line performance |
| Shielding construction | Influences EMI and signal integrity |
Why adhesive thickness matters
The adhesive is part of the dielectric structure.
If the manufacturer calculates impedance using only the PI core and ignores the adhesive and coverlay layers, the predicted result may differ from the finished board.
The complete electrical model should account for:
- PI core thickness
- Adhesive thickness
- Coverlay film
- Coverlay adhesive
- Copper thickness
- Trace width and spacing
- Ground-plane configuration
Solid copper vs cross-hatched ground planes
A solid ground plane provides a continuous reference conductor, but it can increase stiffness in the flex region.
Cross-hatched copper may improve flexibility by reducing the amount of continuous copper, but it changes the electrical characteristics.
This means the impedance model must reflect the actual copper pattern.
Do not approve a 100 Ω differential design using a solid-plane model if the final fabrication drawing specifies a cross-hatched plane.
What should OEM buyers request?
For controlled-impedance flex circuits, request:
- Approved stack-up.
- Dielectric material datasheets.
- Copper thickness and surface information.
- Impedance calculation.
- Test coupon design.
- TDR test results.
- Manufacturing tolerance agreement.
For demanding projects, VNA measurements may also be appropriate depending on frequency range and test objectives.
A useful procurement practice is to place impedance test structures on the same production panel as the actual flex circuits.
This provides a more meaningful verification of the completed construction than relying only on theoretical material data.
12. How Do Flex PCB Materials Affect Rigid-Flex Manufacturing?
Rigid-flex PCBs combine flexible PI sections with rigid materials, commonly FR-4, in one integrated circuit structure.
The material selection challenge is more complex because the flexible and rigid regions have different mechanical and manufacturing requirements.
Materials used in rigid-flex constructions
| Construction area | Typical material |
|---|---|
| Flexible dielectric | Polyimide |
| Rigid dielectric | FR-4 |
| Flexible conductor | RA or qualified ED copper |
| Rigid conductor | Copper foil |
| Flex protection | PI coverlay |
| Rigid protection | Solder mask |
| Bonding | Adhesive and bondply systems |
| Local reinforcement | Selected stiffener materials |
Material compatibility at the rigid-to-flex transition
The transition region is one of the most important areas in rigid-flex engineering.
Potential problems include:
- Adhesive flow
- Coverlay misregistration
- Layer separation
- Uneven material thickness
- Local mechanical stress
- Copper cracking
- Delamination near the rigid boundary
The manufacturer must confirm that the proposed material combination is compatible with the lamination sequence and the final board geometry.
Why rigid-flex material selection affects cost
Rigid-flex manufacturing can involve:
- Additional material types
- Multiple lamination operations
- Specialized bonding materials
- More demanding registration
- Selective coverlay processing
- Additional inspection and testing
A low-cost material substitution may create problems with thermal performance, mechanical reliability, or transition-zone bonding.
Material substitutions should therefore require engineering approval.
For projects combining flexible PI layers with rigid FR-4 sections, see our rigid-flex PCB manufacturing capabilities.
This guide focuses on material compatibility. Detailed rigid-flex layer construction, transition design, and fabrication rules belong in the dedicated manufacturing guide.
13. How Should OEM Buyers Specify and Verify Flex PCB Materials?
For procurement teams, the most important material-selection decision is not simply choosing PI, RA copper, or coverlay.
It is ensuring that the manufacturer quotes, purchases, processes, and delivers the exact approved material construction.
A complete RFQ should eliminate ambiguity before the first prototype is manufactured.
1. Define the material specification
The purchasing document should identify:
| Specification | Information required |
|---|---|
| Base film | PI, PET, LCP, or other approved material |
| Material grade | Manufacturer and grade number |
| Base film thickness | Nominal value and tolerance |
| Copper foil | RA or ED |
| Copper thickness | Base and finished thickness |
| Bonding system | Adhesive or adhesiveless |
| Adhesive | Type, thickness, and grade |
| Coverlay | Film material and thickness |
| Stiffener | Material, thickness, location |
| Surface finish | ENIG, OSP, immersion tin, or other specified finish |
| Finished thickness | Overall and local thickness |
| Mechanical requirement | Static or dynamic bending |
| Electrical requirement | Impedance and test tolerance |
| Environmental requirement | Temperature, humidity, and chemical exposure |
2. Verify material traceability
OEM buyers should request documentation supporting the materials used in the production lot.
Depending on project requirements, this may include:
- Material manufacturer’s datasheet
- Material grade and batch identification
- Certificate of Conformance
- RoHS and REACH documentation
- UL recognition information, where applicable
- Approved material substitution records
- Incoming material inspection records
The key requirement is traceability between the approved specification and the actual production materials.
3. Review the manufacturer’s DFM process
A qualified manufacturer should review the following before production:
- Flex-region thickness
- Copper thickness and type
- Bend-zone geometry
- Coverlay openings
- Stiffener position
- Connector insertion thickness
- Layer symmetry
- Copper distribution
- Material compatibility
- Required electrical testing
Do not assume that a standard rigid-PCB DFM review is sufficient for a flexible circuit.
4. Request first-article inspection evidence
For critical applications, request appropriate evidence such as:
- Finished thickness measurements
- Cross-section analysis
- Copper thickness measurements
- Coverlay registration inspection
- Electrical continuity and isolation results
- Impedance coupon results, where required
- Stiffener position measurements
- Bend test results for the specified test construction
The required inspection plan should be agreed before production rather than added after delivery.
5. Evaluate material availability before approving the quotation
Specialty PI grades, adhesiveless FCCLs, specific RA copper thicknesses, and non-standard coverlay materials may have different procurement lead times.
Ask the manufacturer:
- Is the proposed material currently stocked?
- Is it a standard or special-order grade?
- Is the same grade available for repeat orders?
- Will the material be reserved for the project?
- What happens if the material manufacturer discontinues the grade?
- Must an alternative material be approved before substitution?
This is particularly important when moving from prototype quantities to recurring production.
6. Compare quotations using total project cost
The cheapest material quotation does not necessarily provide the lowest total cost.
OEM buyers should compare:
- Material cost
- Tooling and setup cost
- Panel utilization
- Fabrication yield
- Inspection requirements
- Testing requirements
- Special material procurement
- Prototype and production lead times
- Potential redesign and field failure costs
A material system that performs reliably and can be sourced consistently may be more economical over the full product lifecycle.
7. Prepare the correct files for quotation
A complete Flex PCB RFQ package should include:
- Gerber or ODB++ manufacturing data.
- PCB fabrication drawing.
- Material and stack-up specification.
- Copper thickness requirements.
- Flex-zone and bend-zone identification.
- Bend radius and cycle-life requirements.
- Stiffener drawings.
- Connector manufacturer’s thickness requirements.
- Controlled-impedance requirements, if applicable.
- Quantity, prototype schedule, and production forecast.
If some material specifications are not yet finalized, identify them as engineering decisions rather than allowing the manufacturer to make undocumented substitutions.
PCBKR Flex PCB Material and Manufacturing Support
Shenzhen Hongda Circuit Technology Co., Ltd. (PCBKR) supports flexible PCB and rigid-flex PCB projects requiring coordinated material selection and manufacturing engineering.
Our documented polyimide material planning includes PI film thicknesses from 12.5 μm to 125 μm, with copper foil options including 12 μm, 18 μm, 35 μm, and 70 μm, subject to the selected construction and project confirmation.
Material and construction options can be evaluated for:
- Single-sided flexible PCBs
- Double-sided flexible PCBs
- Multilayer flexible circuits
- Adhesive and adhesiveless constructions
- RA copper applications
- PI coverlay
- FR-4 and PI stiffeners
- Custom flexible stack-ups
- Prototype and production requirements
Our engineering review considers the complete construction rather than evaluating each material independently.
For design teams working on high-performance flexible circuits, see our Flex PCB design and manufacturing guidelines.
For projects specifically requiring polyimide-based prototype fabrication, material validation, and prototype planning, see our polyimide Flex PCB prototype manufacturing service guide.
Request a Flex PCB Material Review and Quotation
Send your Gerber files, stack-up, material requirements, bending conditions, and estimated production quantity to:
Shenzhen Hongda Circuit Technology Co., Ltd.
- Website: https://www.pcbkr.com/
- RFQ Email: sales@pcbkr.com
Our engineering team can review the proposed material construction, identify manufacturing concerns, and provide project-specific fabrication feedback before order confirmation.
Frequently Asked Questions About Flex PCB Materials
1. What is the best material for a flexible PCB?
Polyimide (PI) is the most common starting material for high-reliability flexible PCBs because it offers good thermal stability, electrical insulation, and mechanical durability. The complete material system must also include suitable copper foil, bonding materials, coverlay, and reinforcement based on the application.
2. What is the difference between RA copper and ED copper in flexible PCBs?
RA copper is mechanically rolled and annealed, producing an elongated grain structure with generally better ductility for repeated bending. ED copper is electrochemically deposited and can be suitable for static flex applications. RA copper is generally preferred for dynamic-flex regions, but the final selection should be verified against the required bending conditions.
3. Is adhesiveless flex PCB better than adhesive-based flex PCB?
Adhesiveless construction can reduce laminate thickness and improve dimensional stability by eliminating the conventional adhesive layer between copper and the PI base film. It is worth evaluating for thin, fine-pitch, and demanding thermal applications. Adhesive-based construction can remain a cost-effective option for many conventional flex designs.
4. What is the standard copper thickness for a Flex PCB?
Common nominal copper thicknesses include 12 μm, 18 μm, 35 μm, and 70 μm. The correct value depends on current requirements, trace width, resistance, manufacturing conditions, and bending requirements. Thinner copper is often advantageous in dynamic-flex regions, while thicker copper may be necessary for power conductors.
5. Can PET be used instead of polyimide in a flexible PCB?
Yes, PET can be used in selected low-temperature and cost-sensitive flexible circuits, such as membrane switches and non-reflow interconnections. However, PI is generally preferred when the circuit must withstand conventional SMT reflow, higher operating temperatures, or demanding mechanical conditions.
6. Should I use coverlay or solder mask on a Flex PCB?
Polyimide coverlay is generally preferred for flexible regions, especially where repeated bending is required. Flexible solder mask can be suitable for selected static or less demanding regions and applications requiring fine pad openings. The final choice depends on the protective coating formulation, opening geometry, and mechanical requirements.
7. How do I choose the correct stiffener thickness for a ZIF connector?
Use the connector manufacturer’s specified insertion thickness and tolerance. Calculate the complete finished thickness, including the flexible substrate, copper, coverlay, adhesive, and stiffener. Do not select the stiffener thickness independently of the connector specification.
8. What information should I provide when requesting a Flex PCB quotation?
Provide Gerber or ODB++ files, layer count, PI grade and thickness, copper type and thickness, adhesive construction, coverlay specifications, stiffener drawings, finished thickness, bending requirements, surface finish, quantity, and delivery schedule. For controlled-impedance designs, include the impedance target and testing requirements.
9. How can I verify that a Flex PCB manufacturer uses the specified materials?
Request the material datasheets, grade identification, batch traceability, and production documentation. For critical projects, verify copper thickness, finished board thickness, cross-sections, electrical test results, and material substitution records against the approved fabrication specification.
10. Does a thinner Flex PCB always have a longer bending life?
No. Lower total thickness can reduce bending strain for a given radius, but flex life also depends on copper type, copper thickness, neutral-axis position, adhesive construction, coverlay, trace geometry, and the actual bending conditions. A thinner board must still pass the required application-specific mechanical testing.






, and schematics detailing heavy copper PCB cross-sections, LDI, VCP plating, and laser ablation processes.](https://www.pcbkr.com/wp-content/uploads/2026/07/copper-base-pcb-quote-procurement-guide-hongda-circuit-768x429.webp)
