Introduction: Why Microvia PCB Technology Defines the Next Generation of Interconnects

The global electronics industry is undergoing a structural transformation. AI server clusters, 5G-Advanced base stations, autonomous driving compute platforms, and high-performance computing (HPC) accelerators are pushing printed circuit board (PCB) technology into territories once reserved for semiconductor packaging. At the center of this shift sits microvia PCB fabrication—a manufacturing discipline where hole diameters shrink below 150 μm, trace widths approach single-digit microns, and layer counts exceed 100 in a single backplane assembly.

For procurement engineers, hardware program managers, and R&D directors evaluating suppliers in 2026, the stakes have never been higher. A single AI server rack—think NVIDIA HGX H100 or the emerging Blackwell B200 architecture—contains approximately eight times the PCB content of a traditional enterprise server, with board values reaching RMB 19,500 per unit and climbing. The substrate material alone has evolved from standard FR-4 to M7/M8-grade low-loss laminates, with next-generation Rubin/GB300 platforms already specifying M9-grade dielectrics.

This guide is written for the B2B decision-maker who needs more than a product brochure. Whether you are Sourcing High-Reliability Microvia PCBs from China, qualifying an mSAP PCB manufacturer for a smartphone motherboard, or negotiating high-layer-count backplane contracts for a hyperscale data center, the following sections provide the technical depth, process transparency, and supplier evaluation framework necessary to make an informed procurement decision.

At Shenzhen Hongda Circuit Technology Co., Ltd. , we have shipped microvia-enabled boards to over 10,000 global customers across 60 countries. Our 2026 manufacturing footprint includes 104-layer backplane capability, Any-Layer HDI mass production, mSAP-processed fine-line circuits down to 8 μm/8 μm line/space, and full 224G PAM4 signal integrity qualification. This article reflects our actual production data, equipment specifications, and quality systems—not marketing aspiration.

What Is a Microvia PCB? Structure, Classification, and Manufacturing Fundamentals

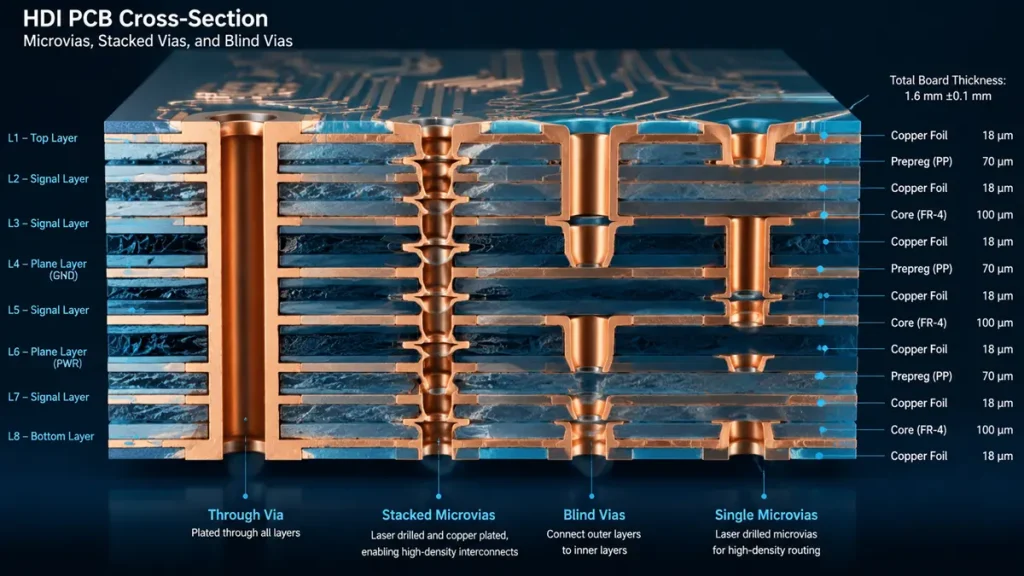

HDI PCB Cross-Section Structure: Stacked Microvias, Blind Vias, and Multi-Layer Layers

Defining the Microvia: From Mechanical Drilling to Laser Ablation

A microvia is defined by IPC-6012 as a blind or buried interconnect with a maximum diameter of 150 μm (0.006 inches). In practice, leading microvia PCB manufacturers now routinely produce holes in the 50–100 μm range, with advanced femtosecond laser drilling systems achieving 20–30 μm diameters at aspect ratios exceeding 15:1.

The transition from mechanical drilling to UV/CO₂ laser drilling was not merely an equipment upgrade—it was a paradigm shift. Mechanical drill bits, even at their finest, struggle below 200 μm due to bit deflection, runout, and breakage. Laser ablation, by contrast, removes dielectric material through photochemical decomposition rather than physical cutting, enabling:

• Hole densities up to 500,000 holes/m² on large-format panels (600 mm × 600 mm)
• Positioning accuracy within ±5 μm, critical for fine-pitch BGA landing pads
• Depth-controlled blind via formation without penetrating to subsequent layers
• Clean hole walls with minimal resin smear, reducing desmear process variability

At Shenzhen Hongda Circuit Technology, our Mitsubishi UV/CO₂ laser drilling systems are paired with automated optical registration and real-time beam profiling, providing full-spectrum Laser Microvia Drilling Technology and Capabilities: UV, CO₂, and Femtosecond Systems for precision HDI PCB fabrication. For rigid-flex applications requiring extreme miniaturization, we have additionally qualified picosecond/femtosecond laser sources that achieve 50 μm microvias in polyimide-flex layers with layer-to-layer alignment accuracy of ±25 μm.

Microvia Structural Types: Stacked, Staggered, and Skip-Via Configurations

Not all microvia PCB designs are created equal. The via stacking architecture directly impacts reliability, manufacturing yield, and cost. Procurement teams should understand three primary configurations:

Stacked microvia PCBs represent the highest-risk, highest-reward configuration. When four or more blind vias are stacked vertically—common in Any-Layer HDI designs for AI server GPU carriers—the cumulative thermal expansion stress at the via base can exceed the fracture threshold of the copper barrel. This is why copper-filled microvia technology (often called VIPPO, or Via-in-Pad Plated Over) is non-negotiable for high-reliability applications. Our plating line achieves void-free copper fill at aspect ratios up to 20:1 using proprietary suppressor/accelerator/leveler additive chemistry, followed by precision planarization to ensure a flat landing surface for subsequent component attachment.

Blind Via vs. Buried Via: Procurement Implications for Layer Count and Cost

Blind vias originate on an outer layer and terminate at an internal layer, visible from one side of the board. Buried vias connect internal layers only, completely invisible from the surface. The choice between these structures has direct consequences for:

1. Layer-pair processing cost: Each buried via layer pair requires separate lamination and drilling cycles, increasing manufacturing complexity by 15–25% per additional lamination stage.
2. Test accessibility: Blind vias can be electrically tested from the surface; buried vias require indirect test methodologies or reliance on process control.
3. Signal integrity: Buried vias eliminate surface pad capacitance, beneficial for 224G PAM4 and other ultra-high-speed channels where every femtofarad matters.

For AI server backplane PCB procurement, our engineering team typically recommends a hybrid approach: blind microvias for BGA escape routing on outer layers, buried vias for power distribution and low-speed signaling in the core, and back-drilled through-holes for high-speed differential pairs where stub length must be minimized.

Why Microvia Technology Is Non-Negotiable for AI Servers and HPC Infrastructure

The Bandwidth Density Problem: From 112G to 224G PAM4 and Beyond

Modern AI training clusters are not merely faster versions of yesterday’s data centers—they rely heavily on specialized Microvia PCBs for AI Servers and HPC Infrastructure across fundamentally different architectures. A single NVIDIA H100 GPU consumes 700W and communicates with seven neighboring GPUs through NVLink at 900 GB/s aggregate bandwidth. The PCB carrying these signals must maintain channel operating margin (COM) above 3 dB at 56 GHz Nyquist frequencies, with insertion loss budgets often below 1.5 dB for a 12-inch channel.

At 224G PAM4 data rates—the baseline for 2026 AI server switch fabrics and next-generation PCIe Gen6—evaluating Microvia vs. Through-Hole PCB: Key Differences and Selection Guide demonstrates why traditional through-hole vias become electrical liabilities. The via stub acts as an unterminated transmission line segment, creating resonant nulls in the S-parameter response. A 0.5 mm via stub in an FR-4 environment produces a catastrophic reflection at approximately 20 GHz, rendering the channel unusable.

Microvia PCB technology solves this through three mechanisms:

1. Shorter via lengths: A blind microvia connecting L1→L2 in a 1.6 mm board has a stub length of roughly 100 μm versus 800 μm for a through-hole. This reduces stub resonance into the 100+ GHz range, well above current signaling Nyquist frequencies.
2. Smaller pad diameters: Microvia pads can be as small as 200 μm, reducing parasitic capacitance by 60–70% compared to 400 μm mechanical via pads. This directly improves impedance continuity and reduces differential skew.
3. Via-in-pad (VIP) integration: By placing the microvia directly under the BGA pad, trace escape routing is eliminated entirely. For a 0.35 mm pitch BGA, this can free up two additional routing layers that would otherwise be consumed by dog-bone escape patterns.

At Shenzhen Hongda Circuit Technology, our 224G PAM4 PCB manufacturing process—validated in production since Q1 2025 and continuously updated with 2026 laminate qualifications—covers depth-controlled back-drilling, ULP-RTF (Ultra-Low-Profile Reverse-Treated Foil) copper qualification, VIPPO fill inspection, and 2-port S-parameter acceptance testing. First-article boards include a full impedance and insertion-loss/return-loss coupon report.

GPU Carrier Boards and High-Layer-Count Backplanes: Where Microvias Meet Macro-Demand

The AI server PCB market is not a single product category. It comprises at least four distinct board types, each with unique microvia requirements:

Our facility has produced 104-layer orthogonal backplane PCBs for HPC clusters, where interlayer registration accuracy must be held within ±25 μm to resist high press-fit connector installation stresses. For these builds, we utilize flat-weave/spread-glass fabric laminates to eliminate the glass-weave effect—a phenomenon where differential pairs crossing glass bundles experience periodic impedance perturbations that manifest as mode conversion and jitter.

Thermal and Mechanical Reliability: The Hidden Cost of Poor Microvia Quality

Procurement teams often focus on electrical performance and unit price while underestimating thermal-mechanical reliability. In AI server environments, boards experience:

• Continuous operating temperatures of 85–105°C at the PCB surface, with hot spots exceeding 125°C near VRM phases
• Thermal cycling from power-state transitions, creating CTE-mismatch stress between copper barrels and epoxy dielectric
• Vibration from cooling fans and pump systems, particularly in liquid-cooled racks

A microvia with incomplete copper plating or voids in the filled barrel will fail under these conditions through barrel cracking or pad lift. Our quality system addresses this through:

• 100% 3D X-Ray inspection (AXI) using Nordson DAGE systems, detecting voids as small as 5% of via volume
• Microsection analysis per IPC-TM-650 2.1.1 on every production lot, measuring copper wrap thickness, nail-heading, and dielectric thickness uniformity
• Thermal shock testing (–65°C to +150°C, 1000 cycles) as part of our AI server PCB qualification protocol
• IST (Interconnect Stress Test) for high-reliability builds, applying accelerated thermal cycling to detect latent via defects before shipment

Manufacturing Technology Breakthrough: mSAP vs. SAP vs. Subtractive Etching

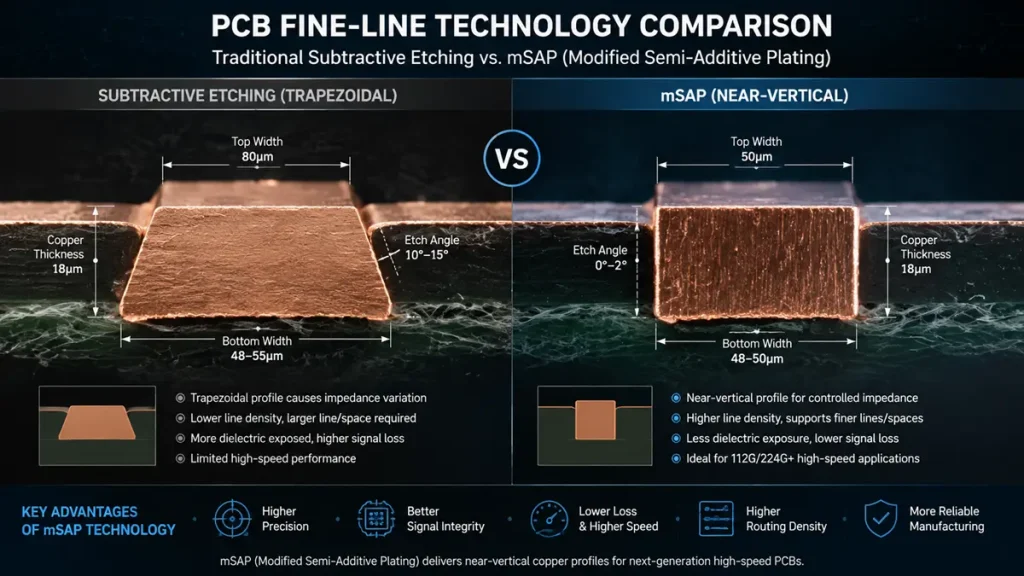

PCB Fine-Line Technology Comparison: Subtractive Etching vs. mSAP

The Fine-Line Imperative: Why Traditional Subtractive Etching Hits a Wall

Conventional subtractive PCB fabrication begins with 18–35 μm copper foil, images the trace pattern, and etches away unwanted copper. This method is mature, cost-effective, and perfectly adequate for line/space dimensions above 50 μm. However, as trace widths shrink below 30 μm, isotropic etching undercut becomes uncontrollable. The etchant attacks copper laterally as well as vertically, creating trapezoidal trace profiles that degrade impedance control and increase signal loss.

For AI server PCBs requiring 224G PAM4 performance, trace geometry is not merely a manufacturing tolerance—it is an electrical parameter. A 5 μm variation in trace width can shift characteristic impedance by 2–3 Ω, consuming precious margin in an already constrained channel budget. This is why leading microvia PCB manufacturers have migrated to semi-additive processes.

mSAP (Modified Semi-Additive Process): The Workhorse of Advanced HDI

Our advanced mSAP Process in Microvia PCB Fabrication begins with an ultra-thin copper seed layer—typically 1.5–3 μm—laminated onto the dielectric substrate. The process sequence is:

1. Clean and condition the thin copper surface
2. Apply dry-film photoresist (DFR) and image the trace pattern with laser direct imaging (LDI)
3. Selective pattern plate copper onto the exposed trace areas, building trace height to the target value (typically 15–20 μm)
4. Strip photoresist and perform a gentle flash etch to remove the thin seed layer between traces

Because the starting copper is only a few microns thick, the flash etch removes almost nothing from the tall plated traces. The result is near-vertical trace sidewalls with minimal undercut, enabling:

• Line/space dimensions of 15–30 μm in mass production
• Impedance control within ±5% across the panel, critical for high-speed differential pairs
• Higher routing density, allowing more traces per channel and reducing overall layer count
• Cleaner BGA escape routing for 0.35 mm and finer pitch devices

At Shenzhen Hongda Circuit Technology, our mSAP line is equipped with SCREEN Ledia LDI exposure systems delivering ±1.5 μm registration accuracy, coupled with a 3-in-1 horizontal plating line (integrated desmear + electroless copper + electrolytic copper) that improves throughput by 40% while reducing chemical consumption. We routinely produce mSAP PCBs with 20 μm/20 μm line/space for smartphone and wearable applications, and have qualified 8 μm/8 μm for substrate-like PCB (SLP) builds targeting AI edge devices.

SAP (Semi-Additive Process): Approaching IC Substrate Precision

SAP PCB fabrication takes the semi-additive principle further by starting with an electroless copper seed layer under 1 μm thick—roughly one-tenth the starting thickness of mSAP. This minimal seed means the flash etch removes virtually no material from the plated traces, producing truly vertical sidewalls and enabling:

• Line/space dimensions down to 5–10 μm in production
• Substrate-level routing density for advanced packaging applications (CoWoS, EMIB, FO-WLP)
• RDL (Redistribution Layer) fabrication for interposers and chiplet architectures

The trade-off is process complexity and cost. SAP requires substrate-grade cleanroom environments, advanced lithography (i-line or DUV steppers), and stricter process control. For most HDI microvia PCB applications, mSAP offers the optimal balance of performance and manufacturability. SAP is reserved for IC substrate and ultra-fine interposer applications where line/space requirements fall below 15 μm.

Process Comparison Matrix for Procurement Decision-Making

For procurement teams evaluating mSAP PCB suppliers, the critical qualification questions are not about line/space capability alone. They should probe:

• What is your flash-etch uniformity across a 24-inch panel? Non-uniform etch rates create line-width variation that destroys impedance control.
• What LDI resolution and registration accuracy do you maintain? At 20 μm line/space, a 3 μm misalignment is a 15% error.
• What is your mSAP yield at target line/space? A supplier quoting 15 μm but achieving 60% yield is not a viable production partner.
• Do you have in-house microsection and SEM capability? Outsourced metrology introduces delays and quality blind spots.

At Hongda Circuit, our mSAP process is monitored with laser displacement sensors for real-time trace height measurement, and every production lot undergoes cross-sectional analysis with scanning electron microscopy (SEM) to verify trace geometry and copper grain structure.

Shenzhen Hongda Circuit Technology: Core Capabilities and 2026 Manufacturing Infrastructure

Production Footprint and Certifications

Shenzhen Hongda Circuit Technology Co., Ltd. operates from our headquarters at Room 1608-1610, Research Development Comprehensive Building, Baoyunda Logistics Center, Baoan, Shenzhen, China. Our facility is built around the principle that advanced PCB manufacturing requires advanced metrology—you cannot control what you cannot measure.

Our quality management system is certified to:

• ISO 9001:2015 – Quality Management Systems
• AS9100D – Aerospace Quality Management (enabling defense and satellite PCB production)
• IPC-6012 Class 3/3A – Performance Specifications for Rigid PCBs
• ISO 13485 – Medical Device Quality Management
• IATF 16949 – Automotive Quality Management
• UL Recognition – Flame resistance and electrical safety

For procurement teams in regulated industries (medical, automotive, aerospace), these certifications are not checkboxes—they are evidence of documented process control, traceability, and continuous improvement. Our Unified Social Credit Code (China Tax ID) is 91440300MA5F6CA091, and we welcome third-party audits by customer quality teams.

Advanced Equipment Portfolio: The Hardware Behind the Capability

Our 2026 capital equipment investment exceeds $12 million in dedicated fine-line and high-speed manufacturing infrastructure. Key systems include:

Material Ecosystem: Partnerships with Global Laminate Leaders

Signal integrity begins with material selection. We maintain strategic inventory partnerships with:

• Isola – Tachyon 100G, I-Tera MT40 (low-loss, high Tg)
• Panasonic – Megtron 6/7/8 (ultra-low-loss for AI server applications)
• Rogers – RO4350B, RO3003 (high-frequency, RF/microwave)
• Taconic – TLY-5, RF-35 (PTFE-based, mmWave applications)
• Shengyi/ITEQ – High Tg FR-4, halogen-free materials for cost-optimized builds

For 2026 AI server builds requiring M8/M9-grade laminates, we maintain a qualified material list (QML) with full lot traceability from raw material through finished PCB. Each laminate lot is incoming-inspected for Dk/Df at 10 GHz, Tg by DSC, and CTE by TMA before release to production.

Capability Summary: What We Build

Global Industry Standards and Certifications: Building B2B Trust Through Compliance

IPC Standards: The Universal Language of PCB Quality

For international procurement teams, IPC standards provide a common framework for specifying and verifying PCB quality without relying on subjective supplier claims. The three standards most relevant to microvia PCB procurement are:

IPC-6012: Qualification and Performance Specification for Rigid Printed Boards – Class 2 (Dedicated Service): Standard commercial/industrial products. Accepts some cosmetic imperfections. – Class 3 (High Performance): Products where continued performance is critical and equipment cannot be easily accessed for repair. Requires stricter dimensional tolerances, plating thickness minimums, and defect allowances. All AI server, medical, and automotive PCBs should specify Class 3 minimum. – Class 3A (Space and Military Avionics): The highest reliability tier, with additional requirements for outgassing, whisker growth, and long-term thermal aging.

At Shenzhen Hongda Circuit Technology, our default production standard for microvia HDI PCBs is IPC-6012 Class 3. Class 3A is available upon request with advanced material qualification and extended test protocols.

IPC-6013: Qualification and Performance Specification for Flexible and Rigid-Flex Printed Boards – Governs bend radius, coverlay adhesion, and dynamic flex life. Critical for wearable and automotive flex applications.

IPC-2226: Design Standard for High Density Interconnect (HDI) and Microvia Printed Boards – Provides design guidelines for microvia diameter, pad size, dielectric thickness, and stacking configurations. We recommend that design teams reference IPC-2226 before finalizing stackups, as designs that violate these guidelines often incur DFM-driven delays and cost overruns.

Automotive, Medical, and Aerospace Certifications

When evaluating a microvia PCB supplier for mission-critical applications, request the certificate numbers and verify them directly with the issuing registrar (e.g., SGS, TÜV, Bureau Veritas). At Hongda Circuit, we provide certificate copies and welcome registrar verification as part of our standard qualification package.

Environmental Compliance: RoHS, REACH, and the EU Green Deal

European procurement teams are increasingly subject to environmental compliance mandates that extend beyond simple RoHS lead-free requirements. The EU Green Deal and upcoming REACH amendments target nickel salts and cyanide-based gold baths—materials historically common in PCB plating lines.

We have responded by qualifying water-based, low-toxicity ENIG chemistries from MacDermid Alpha and Atotech. These 2026-formulation baths reduce hazardous waste generation by 40% while maintaining solderability performance per IPC-4552B. For medical device OEMs bound by ISO 13485 and impending EU environmental audits, specifying a low-toxicity surface finish process is becoming a contractual requirement rather than a preference.

Procurement Decision Framework: How to Evaluate a Microvia PCB Manufacturer

Stage 1: Technical Capability Verification (RFI Phase)

Before requesting quotation, send a technical RFI (Request for Information) that probes the following areas:

1. Microvia Process Control – What is your laser drilling positional accuracy and repeatability? (Target: ±5 μm or better) – What is your maximum qualified microvia aspect ratio for copper-filled vias? (Target: 15:1 minimum for AI server applications) – What is your microvia void rate, and how is it measured? (Target: <1% void rate with 100% 3D X-Ray coverage)

2. Fine-Line Manufacturing – What is your production-qualified mSAP line/space? (Be wary of suppliers quoting 10 μm if their production yield is <70%) – What LDI resolution and registration do you maintain across a 24-inch panel? – What is your flash-etch uniformity, and how is it monitored?

3. High-Speed Signal Integrity – What low-loss materials do you stock, and what is your Dk/Df measurement frequency? (Must be characterized at 10 GHz minimum for 224G PAM4) – What is your impedance control tolerance, and is it verified by TDR or 2D field solver? – Do you offer back-drilling, and what is your remaining stub length capability? (Target: <0.2 mm)

4. Quality System Depth – What is your IPC default class for HDI builds? (Class 3 should be the baseline for high-reliability applications) – What is your internal scrap rate, and what is your customer return rate (ppm)? – Do you maintain lot traceability from raw material to finished PCB?

Stage 2: Design for Manufacturability (DFM) Engagement

The most expensive PCB is one that cannot be built reliably. Our engineering team provides complimentary DFM reviews that typically identify 3–5 design optimizations per project, including:

• Stackup optimization: Balancing signal integrity, manufacturability, and material cost
• Microvia placement: Avoiding via-in-pad on SMT pads that will undergo wave soldering
• Trace spacing: Ensuring mSAP line/space targets are achievable with your density requirements
• Impedance target feasibility: Confirming that your stackup and trace geometry can hit impedance targets with available materials
• Test point accessibility: Ensuring 100% electrical test coverage without probe damage to fine-pitch components

We commit to 24-hour DFM feedback for standard HDI builds and 48-hour turnaround for complex multi-layer or rigid-flex designs.

Stage 3: Prototype Validation and Production Ramp

For new microvia PCB designs, we recommend a structured qualification sequence:

1. Prototype lot (5–10 units): Verify electrical performance, microvia reliability, and mechanical fit
2. Pre-pilot lot (50–100 units): Validate process stability and yield at production parameters
3. Pilot production (500+ units): Confirm Cpk on critical dimensions and establish control limits
4. Mass production: Implement SPC monitoring with automated data collection

Our AI-driven ERP tracking system maintains an industry-leading on-time delivery rate exceeding 95%, with real-time visibility into WIP status, quality hold points, and shipping logistics.

Frequently Asked Questions: Microvia PCB Procurement from a Buyer’s Perspective

Choosing the Right Microvia PCB Partner for 2026 and Beyond

The microvia PCB market in 2026 is defined by a single reality: demand for advanced HDI, mSAP, and high-layer-count backplanes has outstripped capable manufacturing capacity. AI data center expansion, 5G-Advanced deployment, and automotive electrification are consuming premium PCB capacity faster than new facilities can be qualified. In this environment, choosing a supplier based on unit price alone is a high-risk strategy.

The procurement teams that will succeed are those that evaluate suppliers on total cost of ownership: technical capability, quality system maturity, DFM engagement depth, and supply chain resilience. A microvia PCB that fails in thermal cycling after six months in an AI server rack costs far more than a 20% premium on unit price would have saved.

At Shenzhen Hongda Circuit Technology Co., Ltd., we have built our business on the premise that transparency builds trust. Our equipment list, capability data, and certification documentation are available for verification. Our engineering team provides proactive DFM consultation before a single panel is cut. Our quality system is audited, validated, and continuously improved.

Whether you are designing the next generation of AI training clusters, autonomous vehicle compute platforms, or satellite communication payloads, we invite you to evaluate our capabilities against your most demanding requirements.
